ECXV-L37C2N-300.000

Oscillators Overview

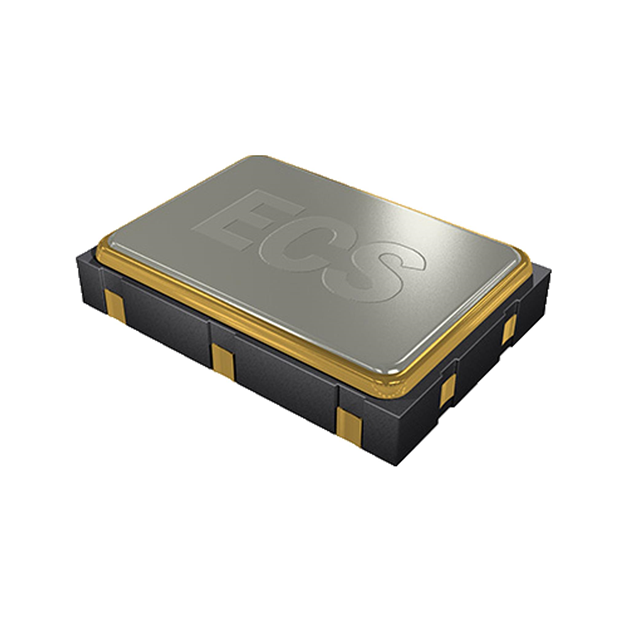

The ECXV-L37C2N-300.000 is a crystal oscillator manufactured by ECS Inc., operating at a nominal frequency of 300.000 MHz. It utilizes a CMOS output type and is housed in a compact surface-mount package with dimensions of 3.2mm x 2.5mm x 0.8mm. The device supports a supply voltage range of 1.8V to 3.3V, ensuring compatibility with various low-voltage digital systems. It features a load capacitance of 15pF and offers a frequency stability of ±50ppm over the industrial temperature range of -40°C to +85°C. The component includes an enable pin for power management and exhibits low phase noise characteristics suitable for high-speed communication applications.

Oscillators Feature Summary

• Compact surface-mount design for space-constrained PCB layouts
• Low voltage operation compatible with modern digital logic families
• Integrated enable control for efficient power management

Oscillators Applications

• High-speed data communication interfaces
• Wireless communication modules
• Portable electronic devices requiring precise timing

Oscillators Procurement Notes

Verify the specific ordering suffixes against the manufacturer's latest datasheet to ensure correct packaging, lead-free status, and tape-and-reel specifications. Confirm that the selected variant meets all environmental compliance requirements such as RoHS and REACH standards for your target market. Cross-reference the part number with official distributor catalogs to validate current availability and authenticity before placing orders.

Oscillators Selection Notes

Choose this oscillator when a small form factor and low power consumption are critical for the design. Ensure the system's voltage rails align with the specified 1.8V to 3.3V operating range. Consider the required frequency stability and phase noise performance relative to the application's signal integrity needs. Verify that the load capacitance matches the circuit design to maintain accurate frequency output.

Oscillators Part Context

This component belongs to ECS Inc.'s series of voltage-controlled or standard crystal oscillators designed for embedded systems. It serves as a clock source for microprocessors, FPGAs, and memory devices. The product line emphasizes miniaturization and energy efficiency, catering to the demands of portable and mobile electronics where board space and battery life are limited constraints.

Oscillators Replacement Considerations

Consult the manufacturer's cross-reference guide for direct replacements. Verify pin-to-pin compatibility and electrical parameter equivalence for any substitute components. Ensure that alternative parts meet the same mechanical and thermal specifications to avoid redesign efforts.
