ED100-1.5-5M0

Overview

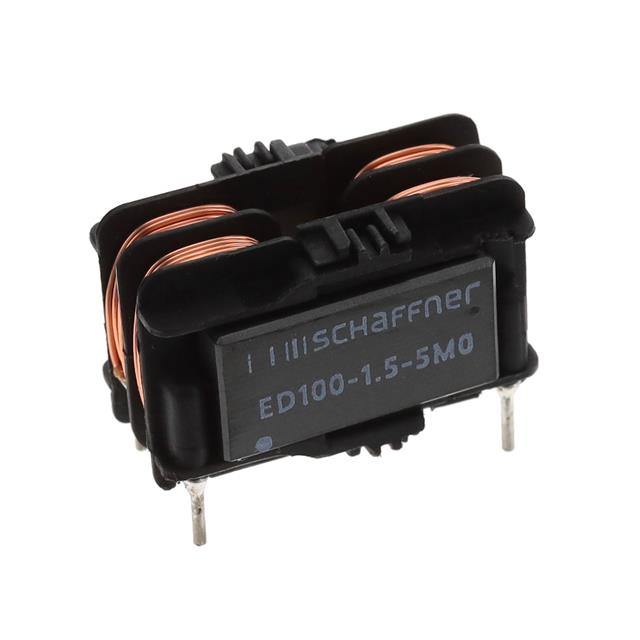

The ED100-1.5-5M0 is a two-line common mode choke manufactured by Schaffner EMC Inc., designed for power line filtering applications. It features a vertical through-hole package with four PC pins. The component provides an inductance of 5 mH at 10 kHz and supports a maximum DC current of 1.5 A. Its typical DC resistance is 300 mOhm. The unit operates within a temperature range of -40°C to +100°C and is rated for AC voltages up to 300V.

Feature Summary

• Suppresses electromagnetic interference in power lines
• Combines common-mode and differential-mode inductances
• Compact and lightweight design

Applications

• Power line filtering
• EMI suppression
• Electromagnetic compatibility design

Procurement Notes

Verify the manufacturer part number against official Schaffner documentation to ensure authenticity. Confirm that the specific suffix matches the required electrical parameters, particularly the 5 mH inductance and 1.5 A current rating. Check for any ordering suffix variations that may alter physical dimensions or pin configurations. Ensure compliance with relevant safety standards before integration.

Selection Notes

Select this component when a 5 mH common mode choke is required for 1.5 A applications. Consider the vertical through-hole mounting style and 300V AC rating. Evaluate the 300 mOhm DC resistance impact on circuit efficiency. Verify thermal performance within the specified -40°C to +100°C operating range for the intended environment.

Part Context

This component belongs to the ED100 series of common mode chokes from Schaffner EMC Inc. The series offers rated currents up to 2 A and combines common-mode and differential-mode inductances. These components are designed to increase power factor and provide compact EMI solutions for various electronic equipment.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
