ED101-0.5-15M

Overview

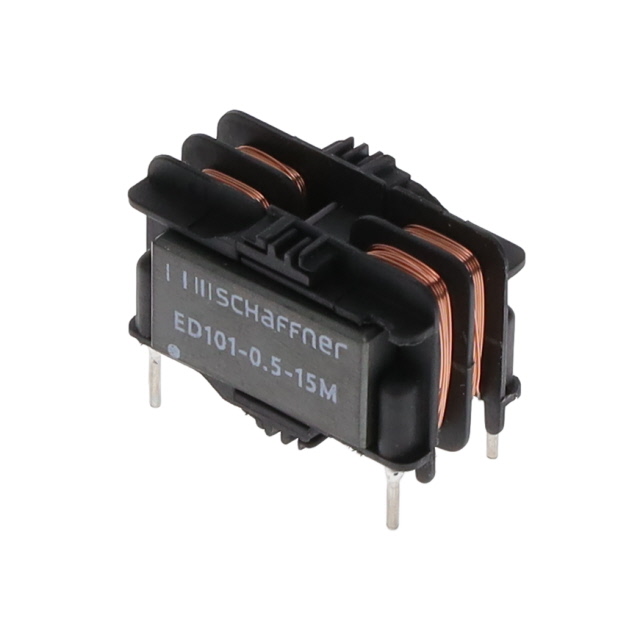

The Schaffner EMC Inc. ED101-0.5-15M is a single-phase common mode choke designed for EMI suppression in two-line circuits. It features a maximum operating voltage of 300 VAC and a current rating of 0.5 A. The component provides an inductance of 15 mH with PCB terminal termination. It operates within a temperature range of -25°C to +100°C and has a pollution degree rating suitable for general electronic environments.

Feature Summary

• Provides effective electromagnetic interference suppression in two-line power circuits
• Utilizes PCB terminal connections for direct board integration
• Designed for high-frequency noise attenuation in compact applications

Applications

• Lighting equipment filtering
• Power line filtering for low-current electronics
• EMI suppression in consumer devices

Procurement Notes

Verify the exact inductance tolerance and leakage current specifications against the official datasheet before finalizing the design. Confirm that the PCB footprint matches the physical dimensions of the ED101 series components. Ensure the selected variant meets the specific thermal requirements of the target enclosure, as the operating temperature range extends up to +100°C.

Selection Notes

Select this component when a 15 mH inductance is required for 0.5 A circuits at 300 VAC. It is suitable for designs needing through-hole mounting on printed circuit boards. Consider the physical size constraints, as it is a stand-alone onboard component. Verify compatibility with the intended signal frequencies for optimal attenuation performance.

Part Context

This part belongs to the ED100/ED101 series of EMC/RFI chokes from Schaffner. These components are engineered as off-the-shelf solutions for standard filtering needs. The series offers various inductance and current ratings to accommodate different power line requirements while maintaining a consistent form factor for easy integration into electronic assemblies.

Replacement Considerations

Check for equivalent parts within the ED100 series or other Schaffner common mode chokes with matching 15 mH inductance and 0.5 A rating. Ensure any substitute maintains the same PCB terminal configuration and voltage rating of 300 VAC.
