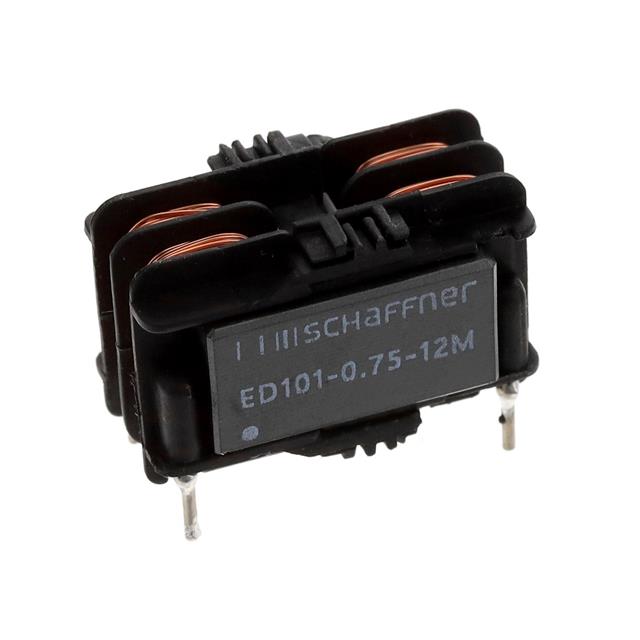

ED101-0.75-12M

$3.20

Description：CMC 12MH 750MA 2LN TH
Series：ED101
Mfr：Schaffner EMC Inc.
Package：Box

SKU:a30949e96953 Category: Common Mode Chokes Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 12MH 750MA 2LN TH
Series：ED101
Mfr：Schaffner EMC Inc.
Package：Box
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：750mA
DC Resistance (DCR) (Max)：1.2Ohm (Typ)
Voltage Rating - DC：-
Voltage Rating - AC：300V
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.945" L x 0.563" W (24.00mm x 14.30mm)
Height (Max)：0.610" (15.50mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：12 mH @ 10 kHz

Download product information

ED101-0.75-12M

Overview

The ED101-0.75-12M is a current compensated common mode choke from the Schaffner ED101 series, designed for PCB mounting via through-hole termination. It features a ferrite core and operates within a temperature range of -40°C to +125°C. Key electrical parameters include an inductance of 12 mH with tolerances of -30% to +50%, a maximum DC current rating of 750 mA, and a typical maximum DC resistance of 1.2 Ohms. The component measures 14.3 mm x 24 mm x 15.3 mm and is unshielded.

Feature Summary

Current compensated design for effective noise suppression
Compact form factor suitable for space-constrained PCBs
Through-hole construction for secure board attachment

Applications

LED driver circuits
Lighting equipment EMC filtering
General EMI/RFI suppression in power supplies

Procurement Notes

Verify the specific manufacturer part number against official TE Connectivity or Schaffner documentation to ensure compatibility with your circuit requirements. Confirm that the 12 mH inductance and 750 mA current ratings align with your system's operational limits before procurement.

Selection Notes

Select this component when a compact, through-hole common mode choke is required for LED drivers or lighting applications. Ensure the 1.2 Ohm DCR and 750 mA limit fit your power budget. Compare against the ED101-1.25-7M0 if higher current capacity is needed.

Part Context

This component belongs to the Schaffner ED101 series of EMC/RFI filters. These are stand-alone onboard components intended for off-the-shelf implementation in electronic systems requiring electromagnetic interference mitigation.

Replacement Considerations

The ED101-1.25-7M0 is a related variant offering 1.25 A current handling and 7 mH inductance. Verify pinout and dimensional compatibility before substitution.
