ED101-1.5-5M0

Overview

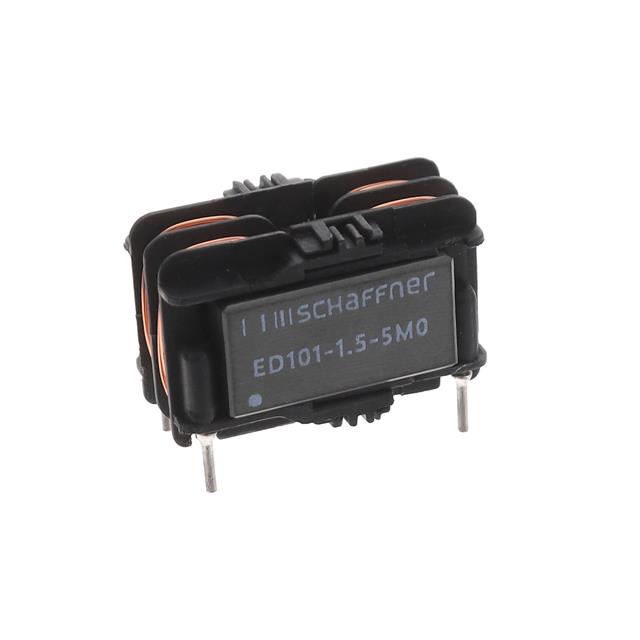

The ED101-1.5-5M0 is a current-compensated common mode choke from the Schaffner ED101 series, designed for power line filtering in lighting applications. It features a vertical through-hole mounting style with a ferrite core and unshielded construction. Key electrical parameters include an inductance of 5 mH at 10 kHz, a maximum DC current rating of 1.5 A, and a maximum DC resistance of 400 mOhms. The component operates within a temperature range of -40°C to +125°C and has physical dimensions of 14 mm x 24 mm x 15.3 mm.

Feature Summary

• Combines common mode and significant differential mode inductance in a single component to reduce PCB footprint and component count.
• Current-compensated design improves power factor and reduces the requirement for X1/X2 capacitors in LED driver circuits.
• Utilizes a ferrite core for effective electromagnetic interference suppression in switching mode power supplies.

Applications

• Power supply driven LED drivers
• Electronic ballasts
• Output filters for switching mode power supplies

Procurement Notes

Verify the manufacturer part number against official Schaffner documentation to ensure authenticity. Confirm that the specific suffix matches the required 5 mH inductance and 1.5 A current rating. Check RoHS compliance status via the official datasheet before integration. Ensure the vertical through-hole package fits the target PCB layout constraints.

Selection Notes

Select this component when both common mode noise suppression and differential mode filtering are required in space-constrained designs. The current-compensated architecture allows for reduced capacitor usage compared to standard chokes. Verify that the 1.5 A saturation current meets the application's peak load requirements and that the operating temperature range covers the environmental conditions.

Part Context

This component belongs to the Schaffner ED101 series of current-compensated chokes. These devices are engineered specifically for lighting applications to enhance efficiency by minimizing external filter components. The series integrates dual filtering functions into one package, supporting compact designs for LED drivers and electronic ballasts while maintaining high power factor performance.

FAQ

What is the inductance tolerance for the ED101-1.5-5M0?

The datasheet specifies an inductance of 5 mH at 10 kHz. Specific tolerance values should be confirmed in the official Schaffner ED101 series datasheet.

Is the ED101-1.5-5M0 shielded?

No, the ED101-1.5-5M0 is an unshielded common mode choke.
