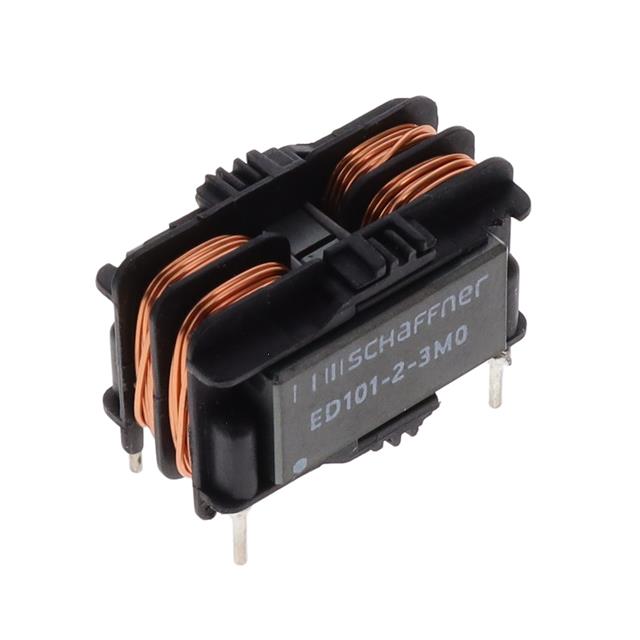

ED101-2-3M0

$1.70

Description：CMC 3MH 2A 2LN TH
Series：ED101
Mfr：Schaffner EMC Inc.
Package：Box

SKU:5553a00ff542 Category: Common Mode Chokes Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 3MH 2A 2LN TH
Series：ED101
Mfr：Schaffner EMC Inc.
Package：Box
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：2A
DC Resistance (DCR) (Max)：200mOhm (Typ)
Voltage Rating - DC：-
Voltage Rating - AC：300V
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.945" L x 0.563" W (24.00mm x 14.30mm)
Height (Max)：0.610" (15.50mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：3 mH @ 10 kHz

Download product information

ED101-2-3M0

Overview

The ED101-2-3M0 is a common mode choke from the Schaffner ED100/ED101 series, designed for LED driver applications. It features a compact current-compensated design suitable for through-hole mounting. The component provides electromagnetic interference (EMI) and radio frequency interference (RFI) suppression in power supply circuits.

Feature Summary

Compact current-compensated construction optimized for space-constrained designs
Integrated EMI/RFI filtering capability for noise reduction
Through-hole mounting configuration for standard PCB assembly

Applications

LED drivers
Power supplies
Battery chargers
Portable devices

Procurement Notes

Verify the specific part number against official TE Connectivity or Schaffner documentation to confirm compatibility with your circuit requirements. Ensure that the component's electrical ratings align with your system's operational parameters before procurement.

Selection Notes

Select this component for applications requiring compact EMI suppression in LED drivers and portable electronics. Consider its current-compensated nature for balanced line filtering needs where space efficiency is critical.

Part Context

Schaffner EMC Inc., now part of TE Connectivity, specializes in EMC filters and power quality solutions. The ED101-2-3M0 belongs to the ED100/ED101 series, which offers off-the-shelf EMC/RFI filter solutions for various electronic equipment.

Replacement Considerations

Consult official manufacturer substitution guides for verified alternatives. Cross-reference technical specifications such as inductance, current rating, and package type when evaluating potential replacement components.
