EDB1332BDBH-1DIT-F-D

Memory IC Overview

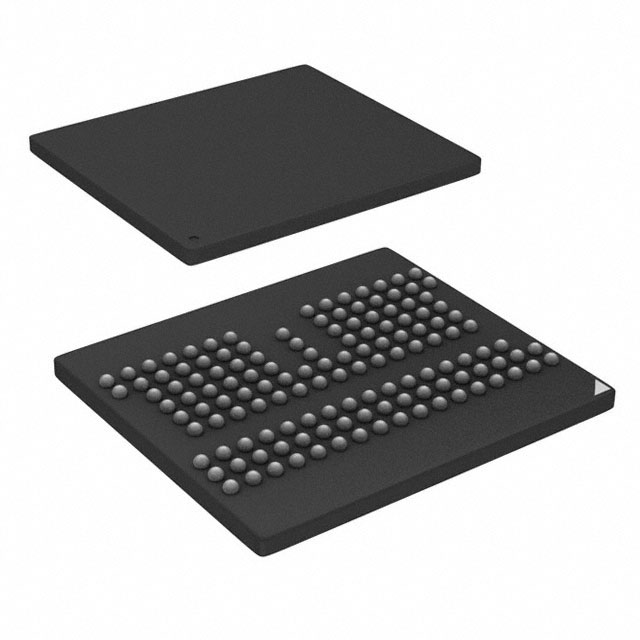

The EDB1332BDBH-1DIT-F-D is a 1Gbit Mobile LPDDR2 SDRAM manufactured by Micron Technology Inc. It features a parallel interface with a maximum clock frequency of 533 MHz and an access time of 5.5 ns. The memory organization is specified as 32M x 32 bits. The device operates within a supply voltage range of 1.14V to 1.95V and supports an operating temperature range of -40°C to 85°C (TC). It is housed in a 134-ball VFBGA package measuring 10x11.5 mm, designed for surface mount applications in mobile electronic devices.

Memory IC Feature Summary

• Mobile Low Power Double Data Rate Type 2 (LPDDR2) SDRAM technology
• Embedded design optimized for space-constrained mobile applications
• Parallel data interface supporting high-speed data transfer

Memory IC Applications

• Smartphones and mobile phones
• Tablets and portable computing devices
• Mobile broadband modules

Memory IC Procurement Notes

Verify the complete part number against official Micron documentation to ensure compatibility with specific system requirements. Confirm that the 134-VFBGA package dimensions and pinout match the target PCB layout. Ensure the selected variant meets the required operating temperature range and voltage specifications for the intended application environment.

Memory IC Selection Notes

Select this component when a 1Gbit capacity is required for mobile embedded systems utilizing LPDDR2 standards. Consider the 533 MHz speed grade and 134-ball package size relative to board space constraints. Verify power supply stability within the 1.14V to 1.95V range to ensure reliable operation across the specified industrial temperature range.

Memory IC Part Context

This part belongs to Micron's U98M Embedded LPDDR2 SDRAM family, which includes 1Gbit, 2Gbit, and 4Gbit options. These components are specifically engineered for mobile applications requiring low power consumption and high performance in compact form factors. The EDB1332BDBH-1DIT-F-D represents the 1Gbit density variant within this series.

Memory IC Replacement Considerations

Consult Micron's official cross-reference guides or datasheets for verified substitute part numbers. Ensure any replacement maintains identical pinout, voltage levels, and timing parameters to guarantee system compatibility without hardware modifications.
