EDZVT2R6.2B

Single Zener Diodes Overview

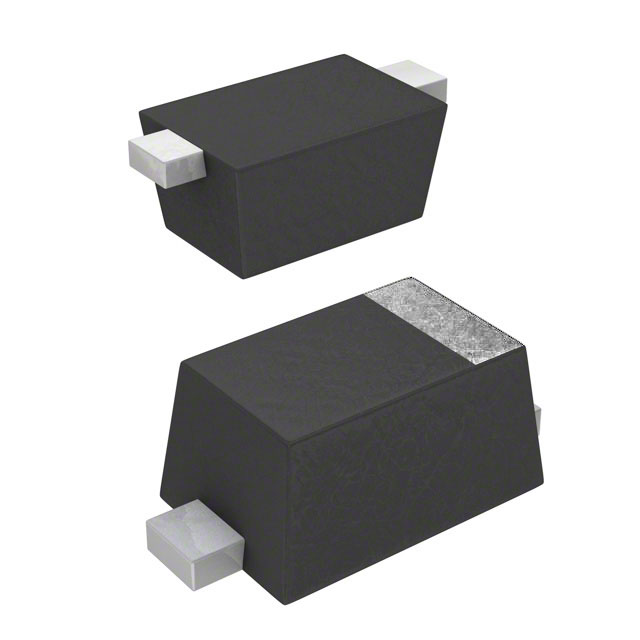

The EDZVT2R6.2B is a single Zener diode manufactured by ROHM Semiconductor, designed for surface mount applications in the SOD-523-2 (EMD2) package. It features a nominal Zener voltage of 6.2 V with a maximum power dissipation of 150 mW. The device operates within a junction temperature range of -55 °C to +150 °C and exhibits a maximum reverse leakage current of 1 µA at a test current of 5 mA.

Single Zener Diodes Feature Summary

• Compact two-terminal plastic mold package optimized for high-density surface mounting
• High reliability construction suitable for demanding electronic environments

Single Zener Diodes Applications

• Voltage regulation circuits
• Transient voltage suppression
• Reference voltage generation

Single Zener Diodes Procurement Notes

Verify the specific ordering suffix and packaging configuration against official ROHM documentation prior to procurement. Confirm that the selected tape and reel quantity aligns with production requirements. Ensure compliance with RoHS directives and check for any end-of-life notifications or last-time buy statuses associated with this component code.

Single Zener Diodes Selection Notes

Select this component when a small form factor is required for low-power Zener regulation. The SOD-523-2 package offers space savings compared to larger outlines. Consider the 150 mW power rating and 60 ohm impedance characteristics for circuit design compatibility. Verify thermal management capabilities within the target operating temperature range.

Single Zener Diodes Part Context

This part belongs to the EDZV series of Zener diodes from ROHM Semiconductor. The series is characterized by its miniature size and suitability for general-purpose voltage regulation tasks. The EDZVT2R6.2B specifically utilizes the EMD2 package code, distinguishing it from other variants in the lineup with different physical footprints or electrical tolerances.

Single Zener Diodes Replacement Considerations

Consult official substitution guides for equivalent parts. Cross-reference specifications such as Zener voltage tolerance, package dimensions, and thermal ratings to ensure functional compatibility without redesigning the PCB layout.
