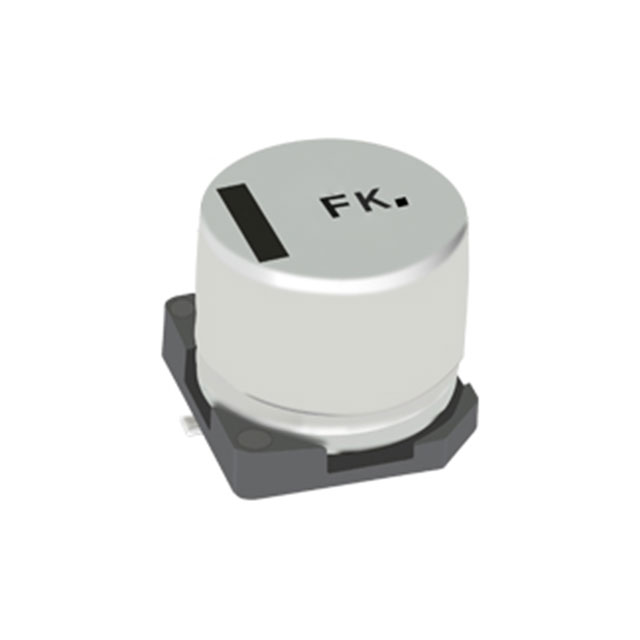

EEE-FK1E470AL

EEE-FK1E470AL is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Panasonic Electronic Components. Its product description is CAP ALUM 47UF 20% 25V SMD. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for EEE-FK1E470AL

• Description：CAP ALUM 47UF 20% 25V SMD
• Series：FK, Halogen Free
• Mfr：Panasonic Electronic Components
• Package：Tape & Reel (TR),Cut Tape (CT)
• Capacitance：47 µF
• Tolerance：±20%
• Voltage - Rated：25 V
• ESR (Equivalent Series Resistance)：-
• Lifetime @ Temp.：2000 Hrs @ 105°C
• Operating Temperature：-55°C ~ 105°C
• Polarization：Polar
• Ratings：AEC-Q200
• Applications：Automotive, High Temperature Reflow
• Ripple Current @ Low Frequency：156 mA @ 120 Hz
• Ripple Current @ High Frequency：240 mA @ 100 kHz
• Lead Spacing：-
• Size / Dimension：0.248" Dia (6.30mm)
• Height - Seated (Max)：0.240" (6.10mm)
• Surface Mount Land Size：0.260" L x 0.260" W (6.60mm x 6.60mm)
• Mounting Type：Surface Mount
• Package / Case：Radial, Can - SMD
• Impedance：360 mOhms

Aluminum Electrolytic Capacitors datasheet and documents for EEE-FK1E470AL
