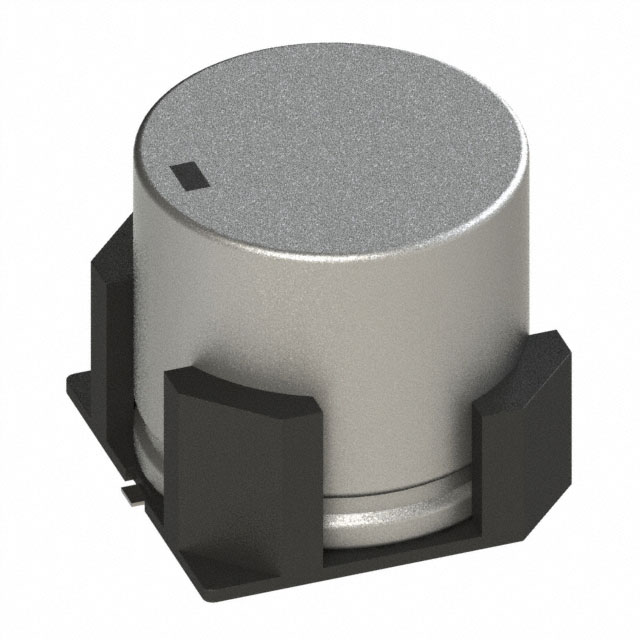

EEE-FK1J681AV

EEE-FK1J681AV is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Panasonic Electronic Components. Its product description is CAP ALUM 680UF 20% 63V SMD. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for EEE-FK1J681AV

• Description：CAP ALUM 680UF 20% 63V SMD
• Series：FK, Anti-Vibration
• Mfr：Panasonic Electronic Components
• Package：Tape & Reel (TR),Cut Tape (CT)
• Capacitance：680 µF
• Tolerance：±20%
• Voltage - Rated：63 V
• ESR (Equivalent Series Resistance)：80mOhm @ 100kHz
• Lifetime @ Temp.：5000 Hrs @ 105°C
• Operating Temperature：-55°C ~ 105°C
• Polarization：Polar
• Ratings：AEC-Q200
• Applications：Automotive, High Temperature Reflow
• Ripple Current @ Low Frequency：1.2675 A @ 120 Hz
• Ripple Current @ High Frequency：1.69 A @ 100 kHz
• Lead Spacing：-
• Size / Dimension：0.709" Dia (18.00mm)
• Height - Seated (Max)：0.673" (17.10mm)
• Surface Mount Land Size：0.748" L x 0.748" W (19.00mm x 19.00mm)
• Mounting Type：Surface Mount
• Package / Case：Radial, Can - SMD
• Impedance：-

Aluminum Electrolytic Capacitors datasheet and documents for EEE-FK1J681AV
