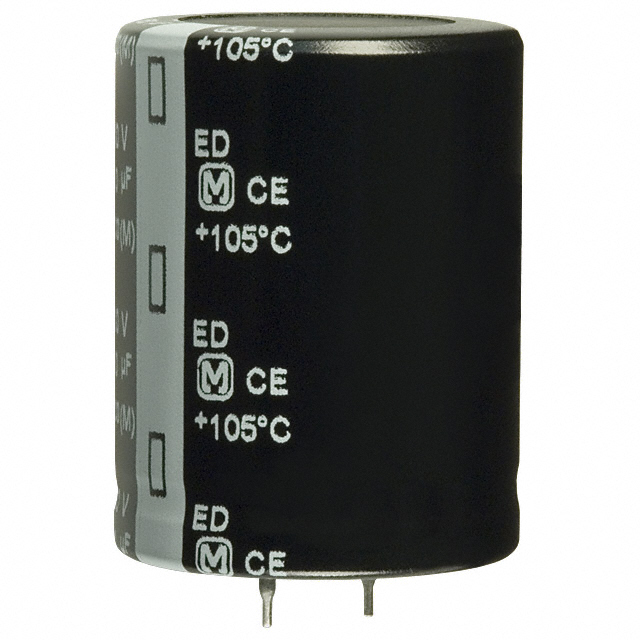

Aluminum Electrolytic Capacitors EET-ED2G561EA product image

EET-ED2G561EA

Description：CAP ALUM 560UF 20% 400V SNAP TH
Series：TS-ED
Mfr：Panasonic Electronic Components
Package：Bulk

SKU:b7e9de9cd91d Category: Aluminum Electrolytic Capacitors Brand: Panasonic Electronic Components

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

EET-ED2G561EA is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Panasonic Electronic Components. Its product description is CAP ALUM 560UF 20% 400V SNAP TH. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for EET-ED2G561EA

Description：CAP ALUM 560UF 20% 400V SNAP TH
Series：TS-ED
Mfr：Panasonic Electronic Components
Package：Bulk
Capacitance：560 µF
Tolerance：±20%
Voltage - Rated：400 V
ESR (Equivalent Series Resistance)：237mOhm @ 120Hz
Lifetime @ Temp.：3000 Hrs @ 105°C
Operating Temperature：-25°C ~ 105°C
Polarization：Polar
Ratings：-
Applications：General Purpose
Ripple Current @ Low Frequency：2.35 A @ 120 Hz
Ripple Current @ High Frequency：3.36 A @ 100 kHz
Lead Spacing：0.394" (10.00mm)
Size / Dimension：1.378" Dia (35.00mm)
Height - Seated (Max)：1.772" (45.00mm)
Surface Mount Land Size：-
Mounting Type：Through Hole
Package / Case：Radial, Can - Snap-In
Impedance：-

Aluminum Electrolytic Capacitors datasheet and documents for EET-ED2G561EA
