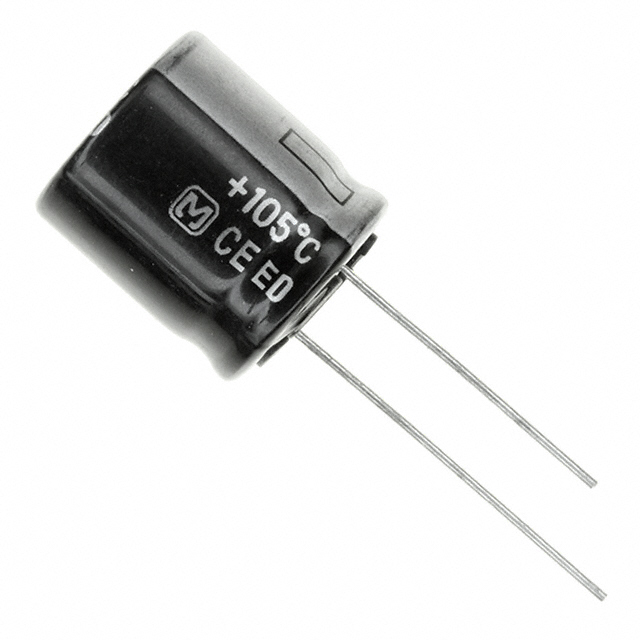

EEU-ED2C221S

EEU-ED2C221S is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Panasonic Electronic Components. Its product description is CAP ALUM 220UF 20% 160V RADIAL. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for EEU-ED2C221S

• Description：CAP ALUM 220UF 20% 160V RADIAL
• Series：ED-A
• Mfr：Panasonic Electronic Components
• Package：Bulk
• Capacitance：220 µF
• Tolerance：±20%
• Voltage - Rated：160 V
• ESR (Equivalent Series Resistance)：-
• Lifetime @ Temp.：10000 Hrs @ 105°C
• Operating Temperature：-25°C ~ 105°C
• Polarization：Polar
• Ratings：-
• Applications：General Purpose
• Ripple Current @ Low Frequency：675 mA @ 120 Hz
• Ripple Current @ High Frequency：1.5 A @ 100 kHz
• Lead Spacing：0.295" (7.50mm)
• Size / Dimension：0.709" Dia (18.00mm)
• Height - Seated (Max)：0.984" (25.00mm)
• Surface Mount Land Size：-
• Mounting Type：Through Hole
• Package / Case：Radial, Can

Aluminum Electrolytic Capacitors datasheet and documents for EEU-ED2C221S
