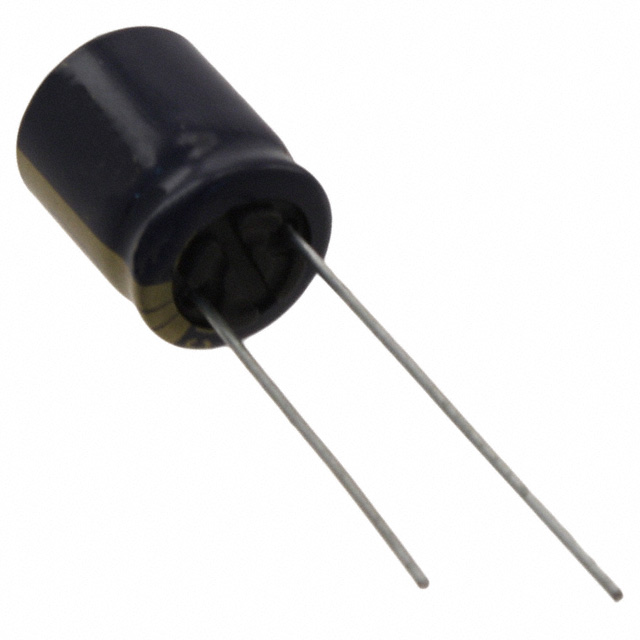

EEU-FC2A390B

EEU-FC2A390B is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Panasonic Electronic Components. Its product description is CAP ALUM 39UF 20% 100V RADIAL TH. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for EEU-FC2A390B

• Description：CAP ALUM 39UF 20% 100V RADIAL TH
• Series：FC
• Mfr：Panasonic Electronic Components
• Package：Tape & Box (TB)
• Capacitance：39 µF
• Tolerance：±20%
• Voltage - Rated：100 V
• ESR (Equivalent Series Resistance)：-
• Lifetime @ Temp.：3000 Hrs @ 105°C
• Operating Temperature：-55°C ~ 105°C
• Polarization：Polar
• Ratings：AEC-Q200
• Applications：Automotive
• Ripple Current @ Low Frequency：260 mA @ 120 Hz
• Ripple Current @ High Frequency：400 mA @ 100 kHz
• Lead Spacing：0.197" (5.00mm)
• Size / Dimension：0.394" Dia (10.00mm)
• Height - Seated (Max)：0.669" (17.00mm)
• Surface Mount Land Size：-
• Mounting Type：Through Hole
• Package / Case：Radial, Can
• Impedance：360 mOhms

Aluminum Electrolytic Capacitors datasheet and documents for EEU-FC2A390B
