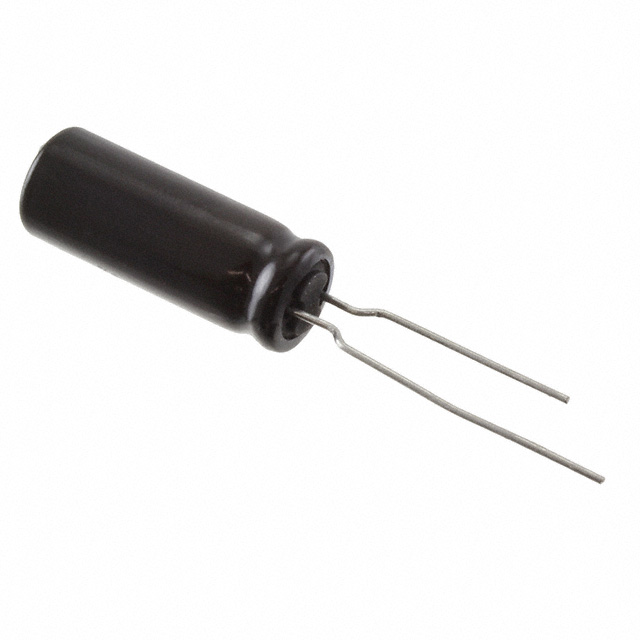

EEU-FS1A182LB

EEU-FS1A182LB is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Panasonic Electronic Components. Its product description is CAP ALUM 1800UF 20% 10V RADIAL. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for EEU-FS1A182LB

• Description：CAP ALUM 1800UF 20% 10V RADIAL
• Series：FS-A
• Mfr：Panasonic Electronic Components
• Package：Cut Tape (CT),Tape & Box (TB)
• Capacitance：1800 µF
• Tolerance：±20%
• Voltage - Rated：10 V
• ESR (Equivalent Series Resistance)：-
• Lifetime @ Temp.：9000 Hrs @ 105°C
• Operating Temperature：-40°C ~ 105°C
• Polarization：Polar
• Ratings：-
• Applications：General Purpose
• Ripple Current @ Low Frequency：1.248 A @ 120 Hz
• Ripple Current @ High Frequency：1.56 A @ 100 kHz
• Lead Spacing：0.197" (5.00mm)
• Size / Dimension：0.315" Dia (8.00mm)
• Height - Seated (Max)：0.866" (22.00mm)
• Surface Mount Land Size：-
• Mounting Type：Through Hole
• Package / Case：Radial, Can
• Impedance：30 mOhms

Aluminum Electrolytic Capacitors datasheet and documents for EEU-FS1A182LB
