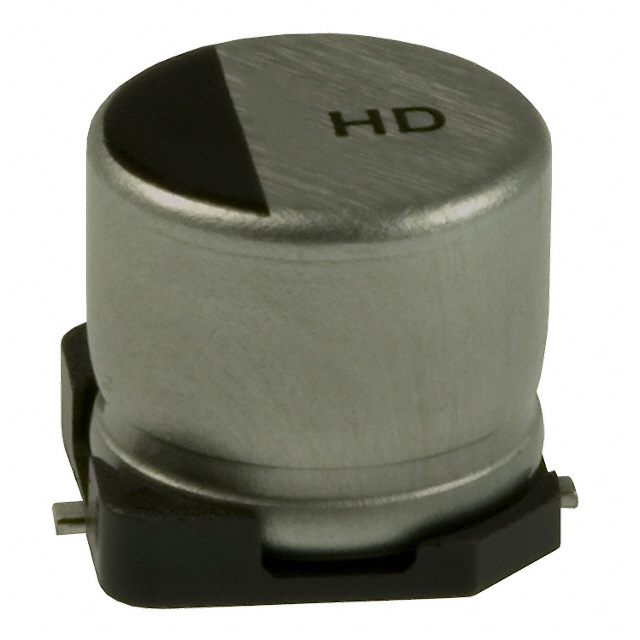

EEV-HD1V220P

EEV-HD1V220P is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Panasonic Electronic Components. Its product description is CAP ALUM 22UF 20% 35V SMD. Review the specifications below when checking this part for your BOM.

Aluminum Electrolytic Capacitors specifications for EEV-HD1V220P

• Description：CAP ALUM 22UF 20% 35V SMD
• Series：HD
• Mfr：Panasonic Electronic Components
• Package：Tape & Reel (TR),Cut Tape (CT)
• Capacitance：22 µF
• Tolerance：±20%
• Voltage - Rated：35 V
• ESR (Equivalent Series Resistance)：-
• Lifetime @ Temp.：5000 Hrs @ 105°C
• Operating Temperature：-40°C ~ 105°C
• Polarization：Polar
• Ratings：-
• Applications：General Purpose
• Ripple Current @ Low Frequency：47 mA @ 120 Hz
• Ripple Current @ High Frequency：79.9 mA @ 10 kHz
• Lead Spacing：-
• Size / Dimension：0.248" Dia (6.30mm)
• Height - Seated (Max)：0.228" (5.80mm)
• Surface Mount Land Size：0.260" L x 0.260" W (6.60mm x 6.60mm)
• Mounting Type：Surface Mount
• Package / Case：Radial, Can - SMD
• Impedance：4 Ohms

Aluminum Electrolytic Capacitors datasheet and documents for EEV-HD1V220P
