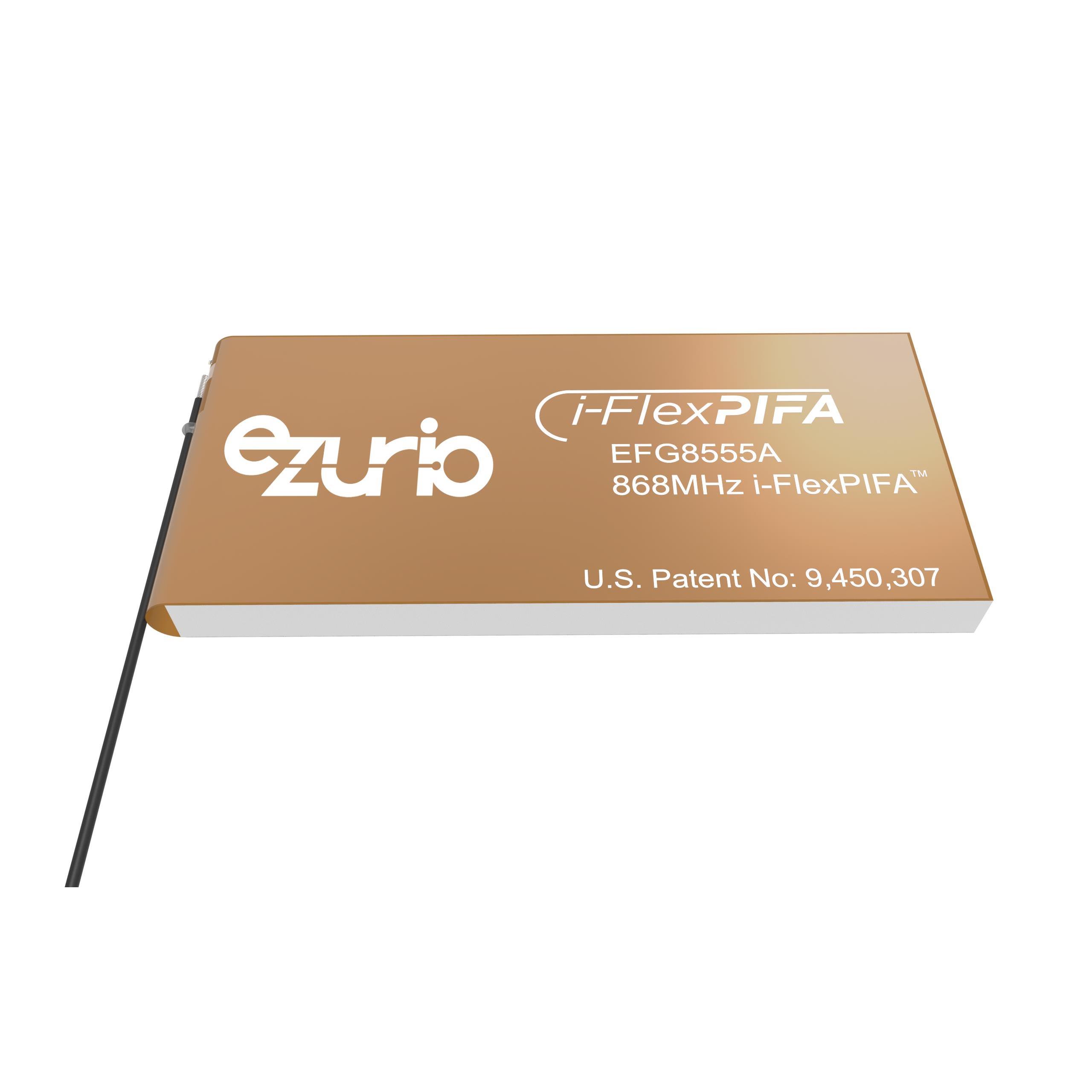

EFG8555A3S-15MHF1 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Ezurio. Its product description is ANT, IFLEXPIFA, 868MHZ, 150MM, M. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for EFG8555A3S-15MHF1
- Description：ANT, IFLEXPIFA, 868MHZ, 150MM, M
- Series：i-FlexPIFA
- Mfr：Ezurio
- Package：Bag
- RF Family/Standard：General ISM
- Frequency Group：UHF (300MHz ~ 1GHz)
- Frequency (Center/Band)：868MHz
- Frequency Range：863MHz ~ 870MHz
- Antenna Type：Flat Patch
- Number of Bands：1
- VSWR：2.5
- Return Loss：-
- Gain：-0.4dBi
- Features：Cable - 150mm
- Termination：U.FL (UMCC), I-PEX MHF1
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Adhesive
- Height (Max)：0.250" (6.35mm)
- Applications：LoRa
- Power - Max：-
Antennas RF datasheet and documents for EFG8555A3S-15MHF1
