EFM8LB10F16E-B-QFN32R

Microcontrollers Overview

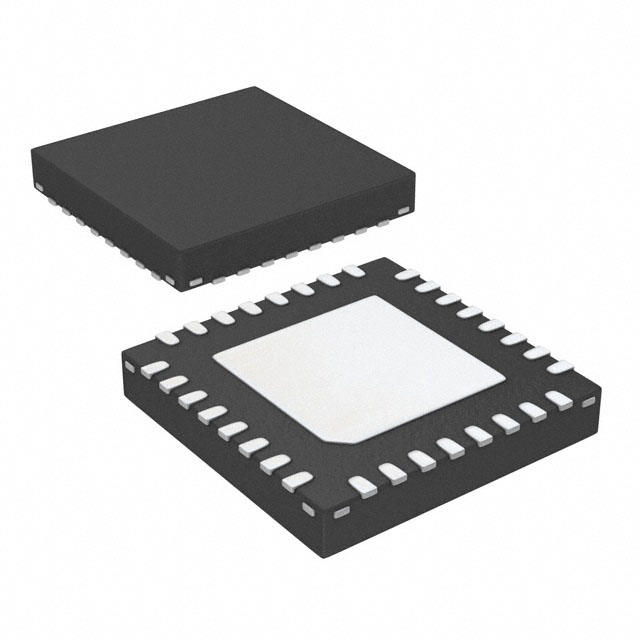

The EFM8LB10F16E-B-QFN32R is an 8-bit microcontroller from the Silicon Labs Laser Bee family, featuring a CIP-51 core with a maximum operating frequency of 72 MHz. It integrates 16 kB of flash memory and 1.28 kB of RAM within a 32-pin QFN package. The device includes a 14-bit ADC with 20 channels, two analog comparators, and multiple communication interfaces including SPI, I2C, and UART. Operating voltage ranges from 2.2 V to 3.6 V, with a specified temperature range of -40 °C to +105 °C.

Microcontrollers Feature Summary

• Integrates a pipelined CIP-51 core for high-performance processing at up to 72 MHz.
• Features a 14-bit ADC with 20 channels and internal calibrated temperature sensor for precision analog applications.
• Includes flexible digital peripherals such as configurable logic units and multiple serial communication interfaces.

Microcontrollers Applications

• Optical network modules
• Precision instrumentation
• Industrial control and automation
• Smart sensors

Microcontrollers Procurement Notes

Verify the specific suffix 'B' against official documentation to confirm it denotes the correct temperature grade or variant revision. Ensure the QFN32 package dimensions match your PCB footprint requirements. Confirm RoHS compliance status through the manufacturer's latest datasheet before finalizing procurement specifications.

Microcontrollers Selection Notes

Select this component when high analog accuracy is required alongside standard 8051 compatibility. The 14-bit ADC and integrated comparators make it suitable for signal conditioning tasks. Consider the 72 MHz clock speed for applications needing fast interrupt response times within a compact 32-pin form factor.

Microcontrollers Part Context

This part belongs to the EFM8LB1 Laser Bee series, designed for mixed-signal system-on-a-chip solutions. It combines robust digital processing capabilities with advanced analog features in small packages. The family supports various memory sizes and pin counts, offering flexibility for space-constrained embedded designs requiring low power and high performance.

Microcontrollers Replacement Considerations

EFM8LB10F16E-C-QFN32R

Microcontrollers FAQ

Does the EFM8LB10F16E-B-QFN32R include DACs?

No, the EFM8LB10 variant does not include built-in Digital-to-Analog Converters (DACs). Other members of the EFM8LB1 family, such as the EFM8LB11 or EFM8LB12, may include DACs depending on their specific configuration.

What is the maximum operating frequency of the CIP-51 core?

The CIP-51 core in the EFM8LB10F16E-B-QFN32R operates at a maximum frequency of 72 MHz.
