EG-2101CA 62.5000M-DCHB

Oscillators Overview

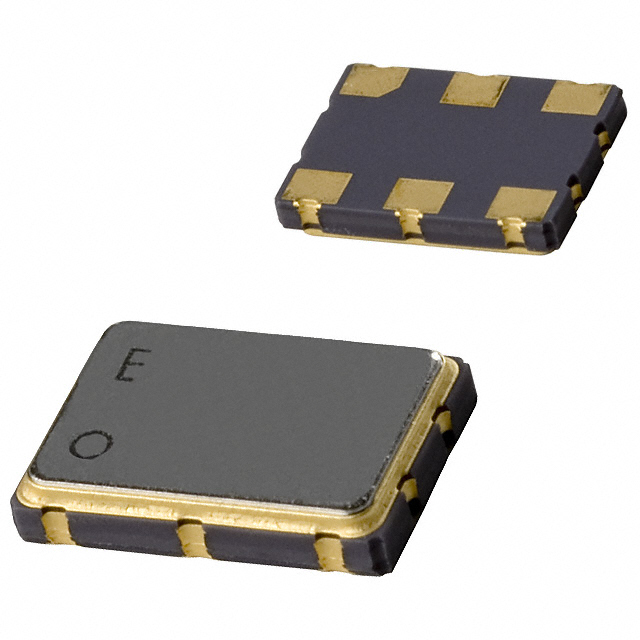

The EG-2101CA 62.5000M-DCHB is a Surface Acoustic Wave (SAW) oscillator manufactured by Epson, operating at a nominal frequency of 62.5 MHz. It utilizes LVPECL output logic and functions with a single 3.3V power supply. The device is housed in a compact 6-SMD surface-mount package without lead. It supports an enable/disable control function and operates within a commercial temperature range of 0°C to +70°C. The unit complies with RoHS standards for environmental safety.

Oscillators Feature Summary

• SAW technology ensures stable frequency generation
• LVPECL output interface for high-speed signaling
• Integrated enable/disable control capability
• Compact 6-SMD surface-mount form factor

Oscillators Applications

• High-speed data communication systems
• Network infrastructure equipment
• Digital signal processing circuits
• Test and measurement instrumentation

Oscillators Procurement Notes

Verify the specific suffix DCHB against official Epson documentation to confirm the exact frequency tolerance and packaging configuration. Ensure the selected variant matches the required LVPECL load conditions and enable pin functionality. Cross-reference the part number with authorized distributors to avoid counterfeit components. Confirm RoHS compliance status through the manufacturer's latest release notes.

Oscillators Selection Notes

Select this component when precise 62.5 MHz timing is required for LVPECL-compatible digital interfaces. Consider the SAW technology for cost-effective stability in commercial temperature ranges. Evaluate the 6-SMD package size against available PCB real estate constraints. Verify that the 3.3V supply voltage aligns with the system's power distribution network requirements.

Oscillators Part Context

This oscillator belongs to Epson's EG-2101CA series of SAW-based timing devices. The series is designed for applications requiring reliable clock signals in consumer and industrial electronics. The model specifies a fixed frequency output with standard LVPECL characteristics, distinguishing it from programmable or differential variants within the broader product family.

Oscillators Replacement Considerations

The EG-2101CA 62.5000M-DCZB is a confirmed substitute part number offering identical electrical specifications and pinout compatibility. Both variants share the same SAW technology and LVPECL output profile. Verify that the substitution maintains the required enable/disable functionality and temperature range specifications.
