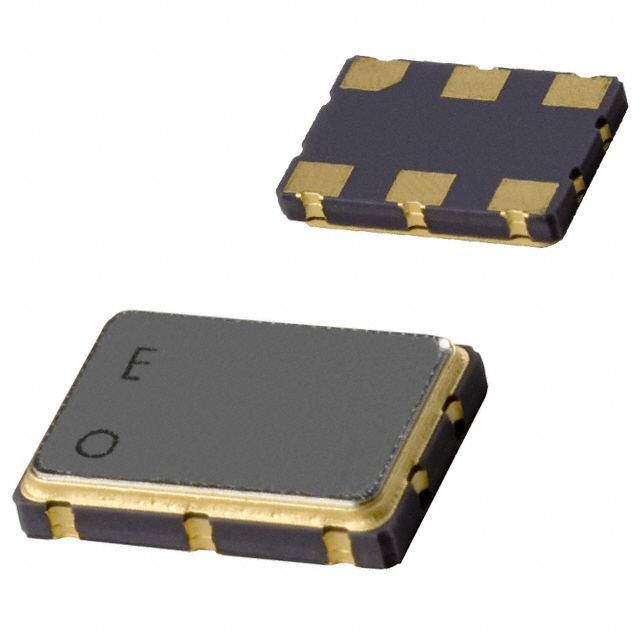

EG-2121CA 125.0000M-VGPNLX

$9.26

Description：XTAL OSC SO 125.0000MHZ LVDS SMD
Series：EG-2121CA
Mfr：EPSON
Package：Tape & Reel (TR)

SKU:c2cb42214573 Category: Oscillators Brand: EPSON

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

EG-2121CA 125.0000M-VGPNLX is listed in the Oscillators range at ChipApex. The manufacturer field lists EPSON. Its product description is XTAL OSC SO 125.0000MHZ LVDS SMD. Review the specifications below when checking this part for your BOM.

Oscillators specifications for EG-2121CA 125.0000M-VGPNLX

Description：XTAL OSC SO 125.0000MHZ LVDS SMD
Series：EG-2121CA
Mfr：EPSON
Package：Tape & Reel (TR)
Base Resonator：Crystal
Type：SO (SAW)
Frequency：125 MHz
Function：Enable/Disable
Output：LVDS
Voltage - Supply：2.5V
Frequency Stability：±50ppm
Absolute Pull Range (APR)：-
Operating Temperature：0°C ~ 70°C
Spread Spectrum Bandwidth：-
Current - Supply (Max)：30mA
Ratings：-
Mounting Type：Surface Mount
Package / Case：6-SMD, No Lead
Size / Dimension：0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max)：0.055" (1.40mm)
Supplier Device Package：6-SMD (7x5)

Oscillators datasheet and documents for EG-2121CA 125.0000M-VGPNLX

EG-2121CA 125.0000M-VGPNLX

Oscillators Overview

The EG-2121CA 125.0000M-VGPNLX is a Surface Mount SAW Oscillator manufactured by Epson Timing, operating at a nominal frequency of 125 MHz. It utilizes LVDS output format and functions within a supply voltage range of 2.375 V to 2.625 V. The device supports Enable/Disable functionality with maximum supply current of 80 mA and disabled current of 20 mA. It features ±50 ppm frequency stability over an operating temperature range of 0°C to +70°C. The component is housed in a 6-SMD, no-lead package measuring 7.00 mm x 5.00 mm x 1.40 mm.

Oscillators Feature Summary

Integrated SAW resonator technology for stable clock generation
Supports active enable and disable control states
Low-jitter performance suitable for high-speed digital interfaces

Oscillators Applications

High-speed data communication systems
Network infrastructure equipment
Server and storage backplanes

Oscillators Procurement Notes

Verify the specific suffix VGPNLX against official Epson documentation to confirm LVDS output and ±50 ppm stability specifications. Ensure the selected variant matches the required 2.5V supply tolerance and industrial temperature range constraints for the target application environment.

Oscillators Selection Notes

Select this oscillator when LVDS signaling is required for noise immunity in high-frequency applications. Consider the ±50 ppm stability requirement and the 0°C to +70°C operational range. Verify that the 6-SMD footprint dimensions align with the PCB layout constraints and thermal management requirements of the design.

Oscillators Part Context

This part belongs to the EG-2121CA series of standard clock oscillators from Epson Timing. The series offers various output formats including LVPECL and LVDS, catering to different system interface needs. The 125 MHz frequency is commonly used in telecommunications and networking standards requiring precise timing references.
