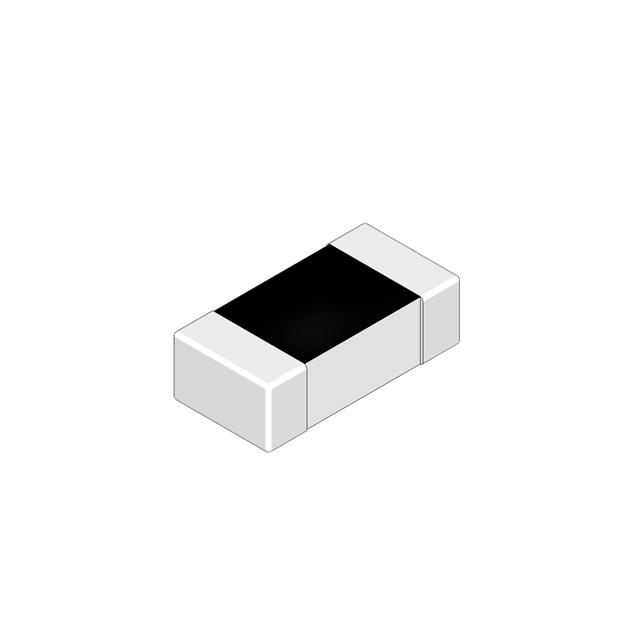

EGA10402V12AMDG

EGA10402V12AMDG is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists INPAQ Technology Co., Ltd. Its product description is TVS DIODE 12VWM 30VC 0402. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for EGA10402V12AMDG

• Description：TVS DIODE 12VWM 30VC 0402
• Series：EGA AMDG
• Mfr：INPAQ Technology Co., Ltd
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Zener
• Bidirectional Channels：1
• Voltage - Reverse Standoff (Typ)：12V (Max)
• Voltage - Breakdown (Min)：-
• Voltage - Clamping (Max) @ Ipp：30V (Typ)
• Current - Peak Pulse (10/1000µs)：-
• Power - Peak Pulse：-
• Power Line Protection：No
• Applications：DVI, HDMI, Telecom, USB
• Capacitance @ Frequency：0.2pF @ 1MHz
• Operating Temperature：-55°C ~ 125°C (TA)
• Mounting Type：Surface Mount
• Package / Case：0402 (1005 Metric)
• Supplier Device Package：402
• Unidirectional Channels：-
• Grade：Automotive
• Qualification：AEC-Q200

Tvs Diodes datasheet and documents for EGA10402V12AMDG
