EH20-0.8-02-5M6

Overview

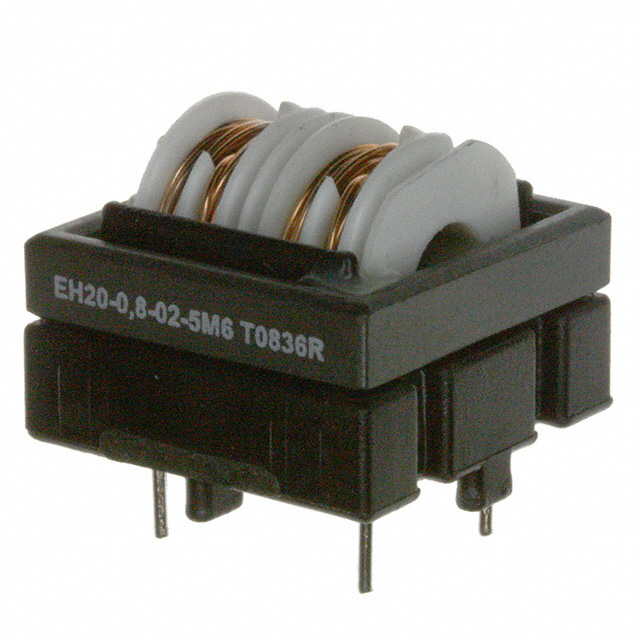

The EH20-0.8-02-5M6 is a common mode choke manufactured by Schaffner EMC Inc., designed for through-hole PCB mounting. It features a ferrite core and operates within a temperature range of -25°C to +100°C. The component provides an inductance of 5.6 mH with a current rating of 0.8 A.

Feature Summary

• Provides common mode noise suppression for sensitive electronic circuits
• Utilizes a ferrite core for effective electromagnetic interference filtering
• Designed for reliable through-hole printed circuit board integration

Applications

• CAT scanners
• Defibrillators
• Laboratory equipment
• X-ray equipment

Procurement Notes

Verify the manufacturer datasheet for precise electrical tolerances and thermal derating curves before finalizing the design. Confirm that the through-hole footprint dimensions match the target PCB layout. Ensure the selected component meets all required safety certifications for the specific medical or laboratory application environment.

Selection Notes

Select this component when a 5.6 mH common mode inductance is required for low-current applications up to 0.8 A. It is suitable for designs needing robust EMI filtering in medical imaging or diagnostic devices. Verify that the operating temperature range covers the intended environmental conditions.

Part Context

This part belongs to the EH series of common mode chokes from Schaffner EMC Inc. These components are engineered for high-performance noise suppression in compact form factors. The series supports various inductance values tailored for different current ratings and frequency response requirements.

Replacement Considerations

Check for direct substitutes within the EH series offering identical 5.6 mH inductance and 0.8 A current handling. Verify mechanical compatibility, including lead spacing and housing dimensions, to ensure seamless replacement without PCB redesign.
