EH20-1.0-02-3M9

$1.09

Description：CMC 3.9MH 1A 2LN TH
Series：EH
Mfr：Schaffner EMC Inc.
Package：Tray

SKU:85565c76692c Category: Common Mode Chokes Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 3.9MH 1A 2LN TH
Series：EH
Mfr：Schaffner EMC Inc.
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：1A
DC Resistance (DCR) (Max)：168mOhm (Typ)
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-25°C ~ 100°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.827" L x 0.827" W (21.00mm x 21.00mm)
Height (Max)：0.740" (18.80mm)
Package / Case：Horizontal, 4 PC Pin
Inductance @ Frequency：3.9 mH @ 10 kHz

Download product information

EH20-1.0-02-3M9

Overview

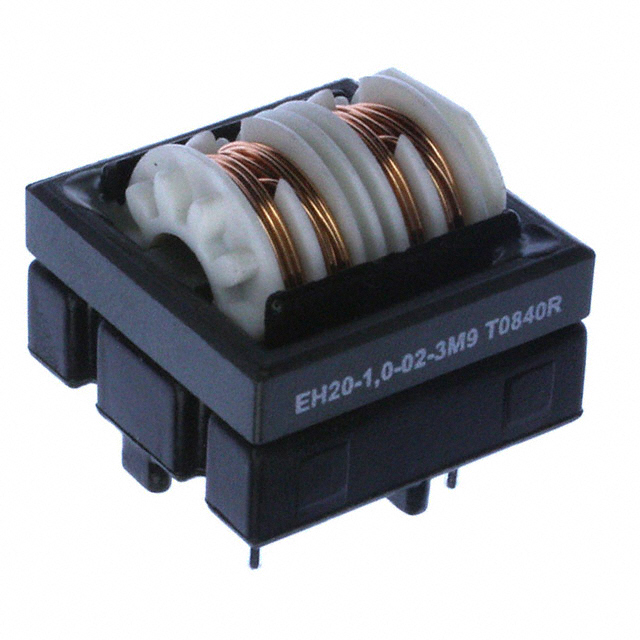

The Schaffner EH20-1.0-02-3M9 is a common-mode choke from the EV/EH series, designed for RFI suppression in compact applications. It features an inductance of 3.9 mH and a rated current of 1 A. The component utilizes through-hole mounting with pin terminals. It offers broadband attenuation with low magnetic leakage flux to ensure optimal interference suppression.

Feature Summary

Provides broadband attenuation for common-mode or asymmetric interference signals
Designed with low magnetic leakage flux for optimal performance
Available in compact sizes suitable for space-constrained designs

Applications

EMI/RFI suppression in electronic circuits
Signal integrity protection in communication systems
Power supply line filtering

Procurement Notes

Verify the manufacturer part number EH20-1.0-02-3M9 against official Schaffner documentation to confirm specifications. Ensure compatibility with required current ratings and inductance values for the specific application environment before procurement.

Selection Notes

Select this component based on its 3.9 mH inductance and 1 A current rating. Consider the compact form factor and through-hole mounting style for integration into PCB layouts requiring efficient common-mode noise reduction.

Part Context

This component belongs to the Schaffner EV/EH series of common-mode chokes. These devices are engineered for high saturation resistance and effective electromagnetic interference suppression in various industrial and consumer electronics applications.

Replacement Considerations

Consult official Schaffner substitution guides for verified alternatives. Cross-reference inductance, current rating, and physical dimensions when evaluating potential replacement parts.
