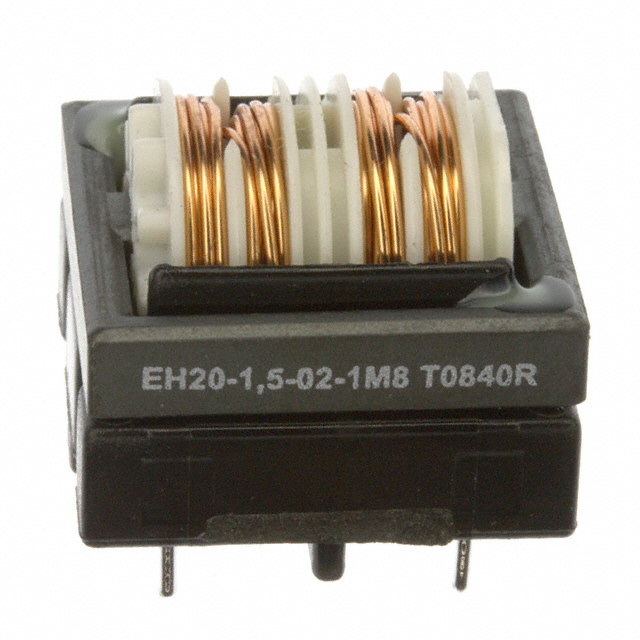

EH20-1.5-02-1M8

$1.09

Description：CMC 1.8MH 1.5A 2LN TH
Series：EH
Mfr：Schaffner EMC Inc.
Package：Tube

SKU:cfa193f322f1 Category: Common Mode Chokes Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 1.8MH 1.5A 2LN TH
Series：EH
Mfr：Schaffner EMC Inc.
Package：Tube
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：1.5A
DC Resistance (DCR) (Max)：72mOhm (Typ)
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-25°C ~ 100°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.827" L x 0.827" W (21.00mm x 21.00mm)
Height (Max)：0.740" (18.80mm)
Package / Case：Horizontal, 4 PC Pin
Inductance @ Frequency：1.8 mH @ 400 Hz

Download product information

EH20-1.5-02-1M8

Overview

The Schaffner EH20-1.5-02-1M8 is a through-hole common mode choke with an inductance of 1.8 mH and a maximum DC current rating of 1.5 A. It features two leads, operates within a temperature range of -40°C to +100°C, and utilizes ferrite core material. The component is unshielded and designed for PCB mounting.

Feature Summary

Provides common mode noise suppression via dual-line configuration
Utilizes ferrite core construction for electromagnetic interference filtering
Designed for vertical through-hole printed circuit board integration

Applications

Power supply input filtering
Signal line noise suppression
Electromagnetic compatibility (EMC) circuits

Procurement Notes

Verify the manufacturer designation as TE Connectivity / Schaffner or Schaffner EMC Inc. during sourcing. Confirm the specific part number EH20-1.5-02-1M8 matches the required 1.8 mH inductance and 1.5 A current rating. Ensure the through-hole package dimensions align with the target PCB layout constraints.

Selection Notes

Select this component when a 1.8 mH common mode choke with a 1.5 A current handling capability is required. It is suitable for applications needing vertical PCB mounting and operation up to 100°C. Verify that the unshielded design meets the spatial and isolation requirements of the assembly.

Part Context

This component belongs to the EH series of common mode chokes manufactured by Schaffner. The series offers various inductance and current combinations for general-purpose EMI suppression. The EH20-1.5-02-1M8 specifically provides 1.8 mH inductance at 1.5 A, utilizing a standard through-hole footprint for reliable circuit integration.
