EH24-0.5-02-44M

Overview

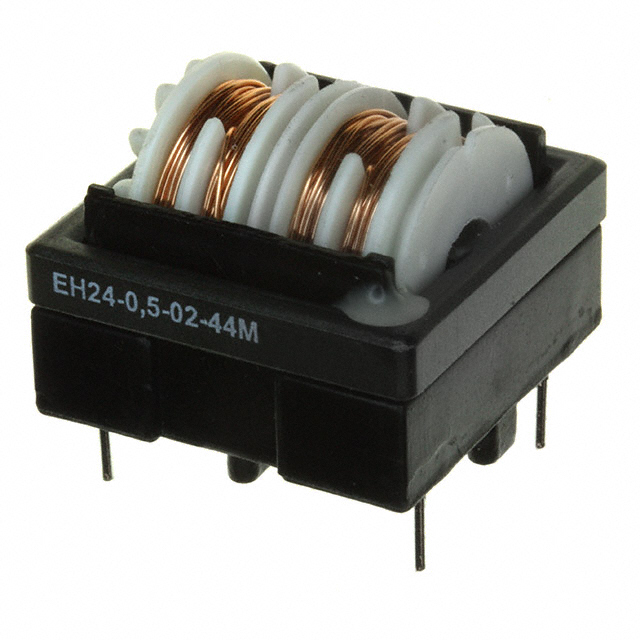

The EH24-0.5-02-44M is a common mode choke manufactured by Schaffner EMC Inc. It features an inductance of 44 mH and a current rating of 500 mA. The component utilizes through-hole mounting technology and is designed for two-line applications. It operates within a temperature range of -25°C to +100°C.

Feature Summary

• Provides common mode noise suppression for signal lines
• Supports through-hole integration into printed circuit boards
• Designed for dual-line configuration

Applications

• Embedded communication systems
• Signal line filtering
• Industrial control circuits

Procurement Notes

Verify the manufacturer designation as Schaffner EMC Inc. when sourcing this component. Confirm that the part number matches the specific 44 mH inductance and 500 mA current rating requirements. Ensure the through-hole package type aligns with your board layout specifications before finalizing procurement orders.

Selection Notes

Select this component for applications requiring moderate common mode attenuation on low-current signal lines. The 44 mH value provides effective filtering for specific frequency ranges. Ensure the PCB footprint accommodates the through-hole leads and verify thermal constraints against the operating temperature limits.

Part Context

This component belongs to the EH series of common mode chokes from Schaffner EMC Inc. These components are engineered for electromagnetic interference suppression in electronic circuits. The series offers various inductance values tailored for different signal integrity requirements.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model.
