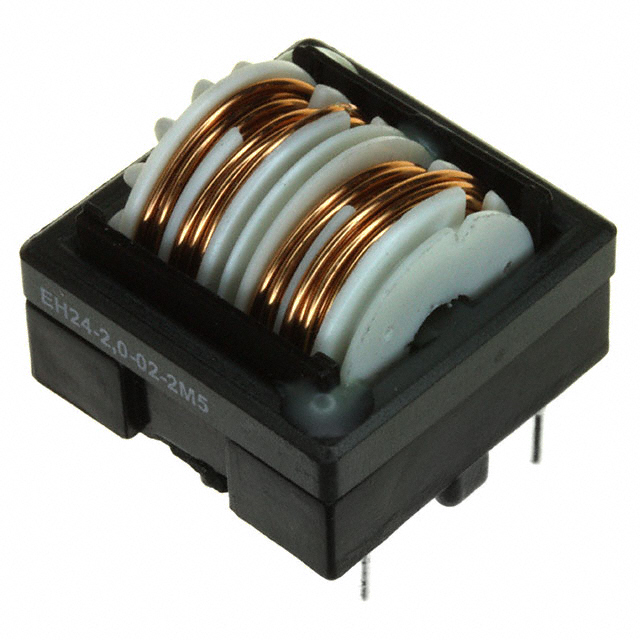

EH24-2.0-02-2M5

$1.39

Description：CMC 2.5MH 2A 2LN TH
Series：EH
Mfr：Schaffner EMC Inc.
Package：Tube

SKU:7931ad5fe071 Category: Common Mode Chokes Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 2.5MH 2A 2LN TH
Series：EH
Mfr：Schaffner EMC Inc.
Package：Tube
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：2A
DC Resistance (DCR) (Max)：62mOhm (Typ)
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-25°C ~ 100°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.945" L x 0.945" W (24.00mm x 24.00mm)
Height (Max)：0.827" (21.00mm)
Package / Case：Horizontal, 4 PC Pin
Inductance @ Frequency：2.5 mH @ 400 Hz

Download product information

EH24-2.0-02-2M5

Overview

The Schaffner EH24-2.0-02-2M5 is a current compensated common mode choke from the EH series, designed for electromagnetic interference suppression. It features an inductance of 2.5 mH with a tolerance of 15%, tested at 10 kHz. The component supports a maximum DC current of 2 A and has a maximum DC resistance of 62 mOhms. It utilizes ferrite core material and is unshielded. The unit measures 24 mm x 24 mm x 20 mm and operates within a temperature range of -25°C to +100°C.

Feature Summary

Current compensated design for effective noise suppression
Ferrite core construction for high saturation resistance
Through-hole PCB mounting configuration

Applications

General EMI/RFI suppression in electronic circuits
Power supply input filtering
Signal line noise reduction

Procurement Notes

Verify the manufacturer part number EH24-2.0-02-2M5 against official TE Connectivity/Schaffner documentation to confirm specifications. Ensure compatibility with your circuit's current requirements (2 A max) and physical space constraints (24x24x20 mm). Check for RoHS compliance status in the latest datasheet before finalizing procurement.

Selection Notes

Select this component when a current-compensated common mode choke is required for low-current applications up to 2 A. The 2.5 mH inductance provides specific attenuation characteristics suitable for general-purpose EMI filtering. Consider the through-hole package type if surface-mount options are not feasible for your assembly process.

Part Context

This component belongs to the EH series of common mode chokes by Schaffner EMC Inc., now part of TE Connectivity. The EH series is characterized by its current-compensated architecture, which offers high saturation resistance compared to standard common mode chokes. This makes it suitable for applications where differential currents may be present alongside common mode noise.

Replacement Considerations

Publicly confirmed substitute part numbers for EH24-2.0-02-2M5 were not found in the provided source data. Verify electrical parameters such as inductance (2.5 mH), current rating (2 A), and dimensions (24x24x20 mm) when evaluating potential alternatives.
