Product Detailed Parameters
- Description：CMC 500UH 4A 2LN TH
- Series：EH
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：4A
- DC Resistance (DCR) (Max)：16mOhm (Typ)
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-25°C ~ 100°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.945" L x 0.945" W (24.00mm x 24.00mm)
- Height (Max)：0.827" (21.00mm)
- Package / Case：Horizontal, 4 PC Pin
- Inductance @ Frequency：500 µH @ 10 kHz
Download product information
Overview

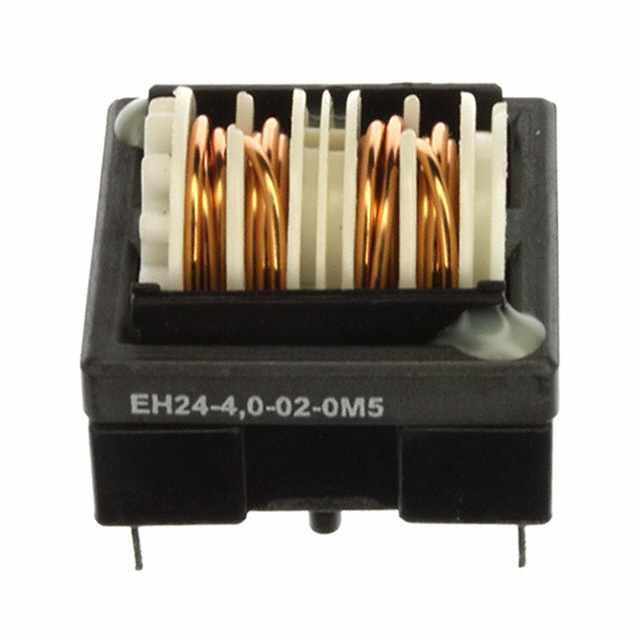

The EH24-4.0-02-0M5 is a common mode choke from the Schaffner EH series, designed for through-hole PCB mounting. It features a vertical package with four PC pins and measures 24 mm x 24 mm x 20 mm. The component utilizes a ferrite core and provides an inductance of 500 uH with a tolerance of 15%. It supports a maximum DC current of 4 A and has a maximum DC resistance of 62 mOhms. The operating temperature range spans from -25°C to +100°C.
Feature Summary
- Vertical through-hole mounting configuration with four PC pins
- Ferrite core construction for effective electromagnetic interference suppression
- Current compensated design suitable for horizontal installation
Applications
- General purpose EMI/RFI suppression in electronic circuits
- Power supply input filtering applications
- Signal line noise reduction in industrial equipment
Procurement Notes
Verify the specific manufacturer part number against official TE Connectivity or Schaffner documentation to ensure authenticity. Confirm that the vertical pin configuration matches your PCB footprint requirements. Check for RoHS compliance status in the latest datasheet before finalizing procurement decisions.
Selection Notes
Select this component when a 500 uH inductance at 4 A is required for common mode noise reduction. Ensure the PCB layout accommodates the 24 mm x 24 mm base and vertical height. Verify thermal management capabilities within the specified -25°C to +100°C operating range for your specific application environment.
Part Context
This component belongs to the EH series of common mode chokes manufactured by Schaffner EMC Inc., now part of TE Connectivity. The series offers various inductance and current ratings for different EMI suppression needs. The EH24 variant specifically denotes the physical size and pin configuration standard within this product family.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult official manufacturer cross-reference lists for verified alternatives.
