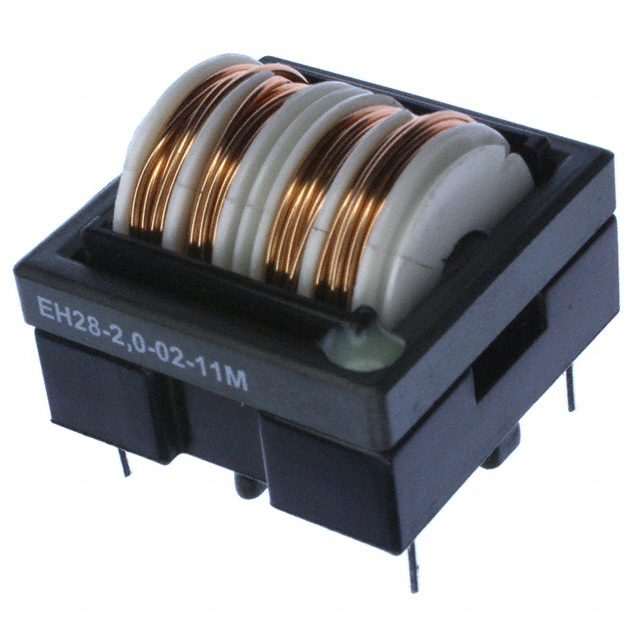

EH28-2.0-02-11M

$2.99

Description：CMC 11MH 2A 2LN TH
Series：EH
Mfr：Schaffner EMC Inc.
Package：Tray

SKU:87a6272f6275 Category: Common Mode Chokes Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 11MH 2A 2LN TH
Series：EH
Mfr：Schaffner EMC Inc.
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：2A
DC Resistance (DCR) (Max)：162mOhm (Typ)
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-25°C ~ 100°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.102" L x 1.102" W (28.00mm x 28.00mm)
Height (Max)：0.941" (23.90mm)
Package / Case：Horizontal, 4 PC Pin
Inductance @ Frequency：11 mH @ 10 kHz

Download product information

EH28-2.0-02-11M

Overview

The EH28-2.0-02-11M is a horizontal common mode choke manufactured by TE Connectivity / Schaffner, designed for printed circuit board mounting via through-hole termination. This single-channel component features an inductance of 11 mH with a 15% tolerance and supports a maximum DC current of 2 A. The device exhibits a maximum DC resistance of 162 mOhms and operates within a temperature range of -25°C to +100°C. Its physical dimensions are 28 mm x 28 mm x 22.9 mm.

Feature Summary

Horizontal PCB mount configuration for space-efficient integration
Through-hole termination for secure mechanical attachment
Ferrite core construction for effective noise suppression

Applications

Power supply input filtering
EMI suppression in electronic circuits
Common mode noise reduction in signal lines

Procurement Notes

Verify the complete part number including suffixes against official manufacturer documentation to ensure correct specifications. Confirm RoHS compliance status and specific packaging details directly with authorized distributors or the manufacturer prior to ordering. Cross-reference datasheet revisions to validate technical parameters.

Selection Notes

Select this component when a horizontal form factor is required for PCB layout constraints. Ensure the 2 A current rating and 11 mH inductance align with the target circuit's noise suppression requirements. Verify that the through-hole mounting style matches the board design and that the operating temperature range covers the application environment.

Part Context

This component belongs to the EH series of common mode chokes from TE Connectivity / Schaffner. The series offers various inductance values and current ratings tailored for different EMI filtering needs. The EH28 designation indicates the specific housing size and mounting orientation within this product family.
