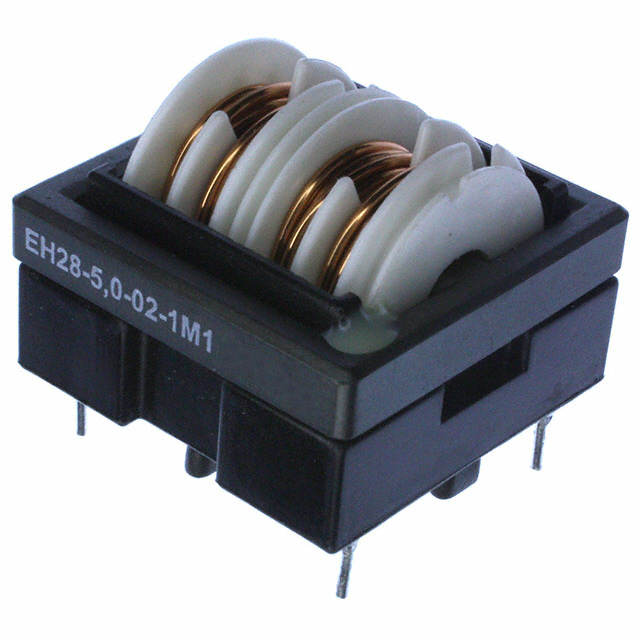

EH28-5.0-02-1M1

$1.77

Description：CMC 1.1MH 5A 2LN TH
Series：EH
Mfr：Schaffner EMC Inc.
Package：Tube

SKU:597c757932cd Category: Common Mode Chokes Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 1.1MH 5A 2LN TH
Series：EH
Mfr：Schaffner EMC Inc.
Package：Tube
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：5A
DC Resistance (DCR) (Max)：27mOhm (Typ)
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-25°C ~ 100°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.102" L x 1.102" W (28.00mm x 28.00mm)
Height (Max)：0.941" (23.90mm)
Package / Case：Horizontal, 4 PC Pin
Inductance @ Frequency：1.1 mH @ 400 Hz

Download product information

EH28-5.0-02-1M1

Overview

The EH28-5.0-02-1M1 is a through-hole common mode choke from the EV/EH series, rated for 5A and 1.1mH inductance. It features two leads and is designed for RFI suppression. The component operates within a temperature range of -40°C to +100°C and meets IEC/EN 61347-1 safety standards.

Feature Summary

High saturation resistance for stable performance under load
Through-hole termination for secure PCB mounting
Dual-line configuration for effective common mode noise reduction

Applications

AC power input filtering
DC-DC converter output stages
General purpose EMI suppression

Procurement Notes

Verify that the specific EH28-5.0-02-1M1 designation matches the required 1.1mH inductance and 5A current rating. Confirm that the through-hole package style aligns with the target printed circuit board layout and assembly processes before finalizing procurement orders.

Selection Notes

Select this component when high saturation resistance is critical for maintaining inductance levels during peak current conditions. Ensure the operating voltage and thermal limits are compatible with the system environment. This part is suitable for applications requiring robust common mode noise attenuation in compact form factors.

Part Context

This component belongs to Schaffner's EV and EH series of common-mode suppression chokes. These parts are engineered for high reliability in electromagnetic compatibility applications, offering consistent performance across various industrial and commercial electronic systems requiring strict noise control.

Replacement Considerations

Cross-reference with other EH series variants or RN series current-compensated chokes if different inductance values or current ratings are required. Verify pinout compatibility and mechanical dimensions before substituting with alternative manufacturers' components.
