EH35-1.0-02-90M

$5.98

Description：CMC 90MH 1A 2LN TH
Series：EH
Mfr：Schaffner EMC Inc.
Package：Tube

SKU:031442d08666 Category: Common Mode Chokes Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 90MH 1A 2LN TH
Series：EH
Mfr：Schaffner EMC Inc.
Package：Tube
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：1A
DC Resistance (DCR) (Max)：628mOhm (Typ)
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-25°C ~ 100°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.417" L x 1.417" W (36.00mm x 36.00mm)
Height (Max)：1.130" (28.70mm)
Package / Case：Horizontal, 4 PC Pin
Inductance @ Frequency：90 mH @ 400 Hz

Download product information

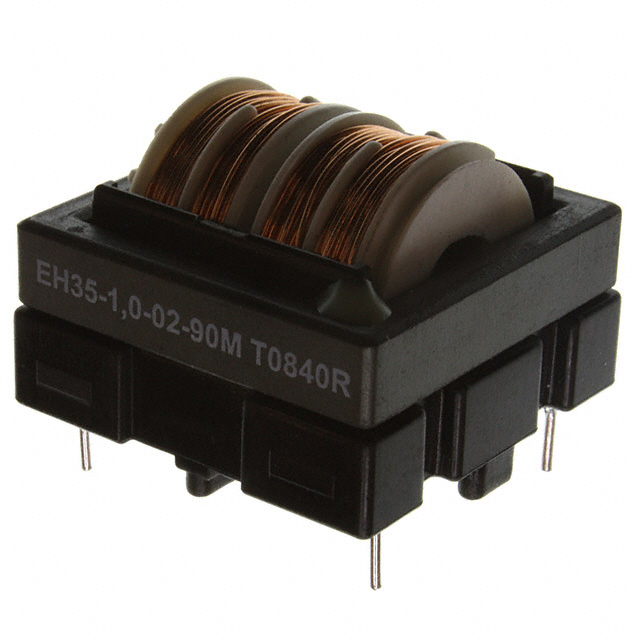

EH35-1.0-02-90M

Overview

The Schaffner EH35-1.0-02-90M is a through-hole common mode choke designed for electromagnetic interference suppression. It features an inductance of 90 mH and supports a current rating of 1 A. The component utilizes a two-line configuration with horizontal pin mounting. This filter is engineered to attenuate common mode noise in electronic circuits, ensuring signal integrity and compliance with emission standards.

Feature Summary

Provides effective attenuation of common mode electromagnetic interference
Utilizes horizontal pin configuration for reliable through-hole mounting
Engineered for stable operation in noise-sensitive electronic applications

Applications

Power supply input filtering
Signal line noise suppression
Electronic equipment EMI mitigation

Procurement Notes

Verify the specific inductance value of 90 mH and current rating of 1 A against design requirements. Confirm the through-hole package type and horizontal pin orientation match the PCB layout. Ensure the manufacturer is identified as Schaffner EMC Inc. to guarantee component authenticity and performance specifications.

Selection Notes

Select this component when high inductance is required for low-frequency noise suppression in single-phase or differential lines carrying up to 1 A. Consider the physical dimensions and mounting style for enclosure integration. Evaluate thermal performance if operating near maximum current limits to ensure long-term reliability.

Part Context

This part belongs to the EH35 series of common mode chokes from Schaffner EMC Inc. The series offers various inductance values and current ratings for different filtering needs. The EH35 designation indicates a specific form factor and mounting style within the company's passive component portfolio.

Replacement Considerations

The EV35-3.0-02-10M is listed as an alternative part number. Verify electrical parameters such as inductance and current rating before substitution. Ensure mechanical compatibility including pin spacing and mounting orientation matches the existing design constraints.
