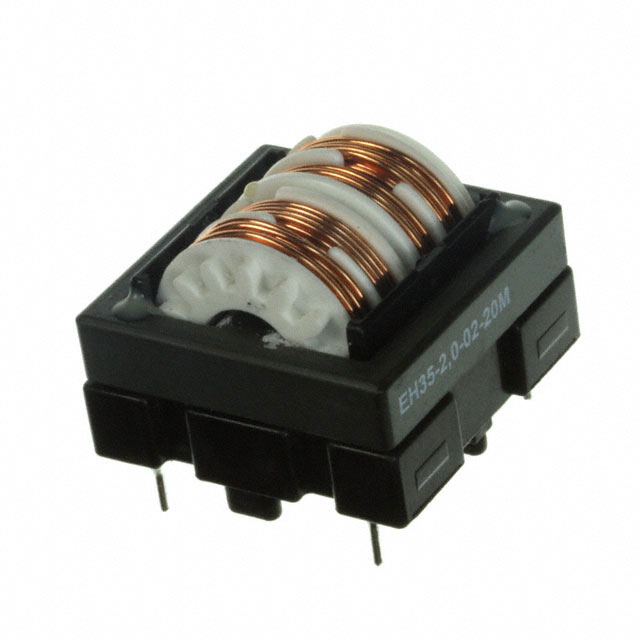

EH35-2.0-02-20M

$3.66

Description：CMC 20MH 2A 2LN TH
Series：EH
Mfr：Schaffner EMC Inc.
Package：Tube

SKU:65215aa008c8 Category: Common Mode Chokes Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 20MH 2A 2LN TH
Series：EH
Mfr：Schaffner EMC Inc.
Package：Tube
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：2A
DC Resistance (DCR) (Max)：150mOhm (Typ)
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-25°C ~ 100°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.417" L x 1.417" W (36.00mm x 36.00mm)
Height (Max)：1.130" (28.70mm)
Package / Case：Horizontal, 4 PC Pin
Inductance @ Frequency：20 mH @ 10 kHz

Download product information

EH35-2.0-02-20M

Overview

The EH35-2.0-02-20M is a common mode inductor manufactured by Schaffner EMC Inc., designed for electromagnetic interference suppression. It features an inductance of 20mH and a rated current capacity of 2A. The component utilizes a two-line configuration suitable for common mode applications. This specific part number identifies the electrical characteristics and physical form factor within the manufacturer's passive component portfolio.
