EH35-3.0-02-10M

$3.68

Description：CMC 10MH 3A 2LN TH
Series：EH
Mfr：Schaffner EMC Inc.
Package：Tube

SKU:4bb4cf33ab73 Category: Common Mode Chokes Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 10MH 3A 2LN TH
Series：EH
Mfr：Schaffner EMC Inc.
Package：Tube
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：3A
DC Resistance (DCR) (Max)：72mOhm (Typ)
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-25°C ~ 100°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.417" L x 1.417" W (36.00mm x 36.00mm)
Height (Max)：1.130" (28.70mm)
Package / Case：Horizontal, 4 PC Pin
Inductance @ Frequency：10 mH @ 400 Hz

Download product information

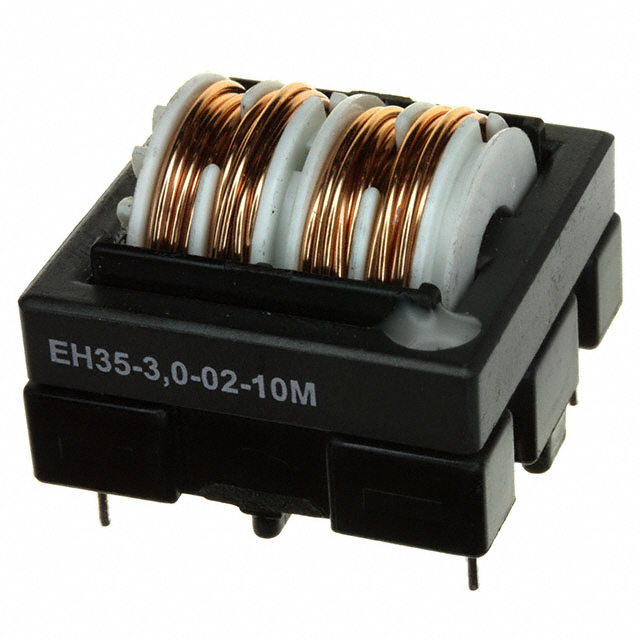

EH35-3.0-02-10M

Overview

The EH35-3.0-02-10M is a two-line common mode choke manufactured by Schaffner EMC Inc., designed for power line filtering applications. It features a nominal inductance of 10 mH and a current rating of 3 A, utilizing through-hole mounting technology. This component suppresses electromagnetic interference (EMI) in AC circuits, providing essential noise reduction for sensitive electronic systems requiring robust signal integrity.

Feature Summary

Suppresses electromagnetic interference in AC power lines
Designed for two-line circuit configurations
Utilizes through-hole mounting technology

Applications

AC power line filtering
Electromagnetic interference suppression
Electronic system noise reduction

Procurement Notes

Verify the specific part number EH35-3.0-02-10M against official Schaffner documentation to confirm technical specifications. Ensure compatibility with existing through-hole assembly processes. Cross-reference manufacturer datasheets for precise electrical characteristics and thermal ratings before integration into final designs.

Selection Notes

Select this component for applications requiring 10 mH common mode inductance at 3 A. Confirm that through-hole mounting aligns with PCB layout constraints. Evaluate EMI suppression requirements against the component's specified performance capabilities for AC line filtering.

Part Context

This component belongs to the EH35 series of common mode chokes from Schaffner EMC Inc. The series offers various inductance and current ratings tailored for different power line filtering needs. The EH35 designation indicates a specific configuration within this broader product family.
