EH35-4.0-02-5M0

Overview

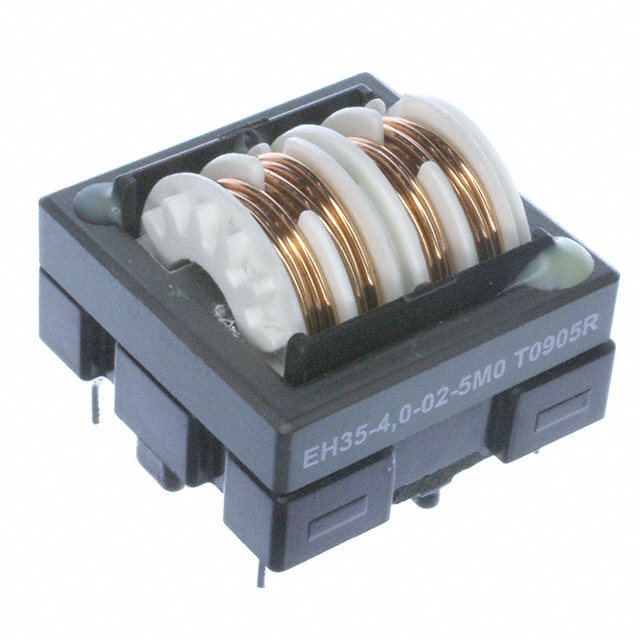

The Schaffner EH35-4.0-02-5M0 is a common-mode suppression choke designed for power line applications. It features a nominal inductance of 5 mH at 400 Hz and supports a maximum current rating of 4 A. The component utilizes through-hole mounting with a horizontal, four-pin configuration. Its typical DC resistance is 53 mΩ, and the physical height is limited to 28.70 mm.

Feature Summary

• Provides common-mode noise suppression for power lines
• Utilizes horizontal through-hole pin configuration
• Engineered for high inductance stability

Applications

• Power line filtering circuits
• Common-mode noise reduction systems
• Electronic equipment input stages

Procurement Notes

Verify the specific inductance tolerance and DC resistance values against the official datasheet before integration. Confirm that the 4 A current rating aligns with the operational requirements of the target circuit. Ensure the through-hole footprint dimensions match the printed circuit board layout constraints.

Selection Notes

Select this component when a 5 mH inductance value is required for common-mode suppression at 400 Hz. The 4 A current capacity suits moderate power applications. The horizontal package style facilitates specific board orientations. Verify compatibility with operating temperatures ranging from -40°C to +100°C.

Part Context

This part belongs to the EH series of common-mode chokes manufactured by Schaffner EMC Inc. The series focuses on power line filtering solutions. The EH35 designation indicates specific physical and electrical characteristics within this product family.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
