Product Detailed Parameters
- Description：CMC 3.6MH 5A 2LN TH
- Series：EH
- Mfr：Schaffner EMC Inc.
- Package：Tube
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：5A
- DC Resistance (DCR) (Max)：33mOhm (Typ)
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-25°C ~ 100°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.417" L x 1.417" W (36.00mm x 36.00mm)
- Height (Max)：1.130" (28.70mm)
- Package / Case：Horizontal, 4 PC Pin
- Inductance @ Frequency：3.6 mH @ 400 Hz
Download product information
Overview

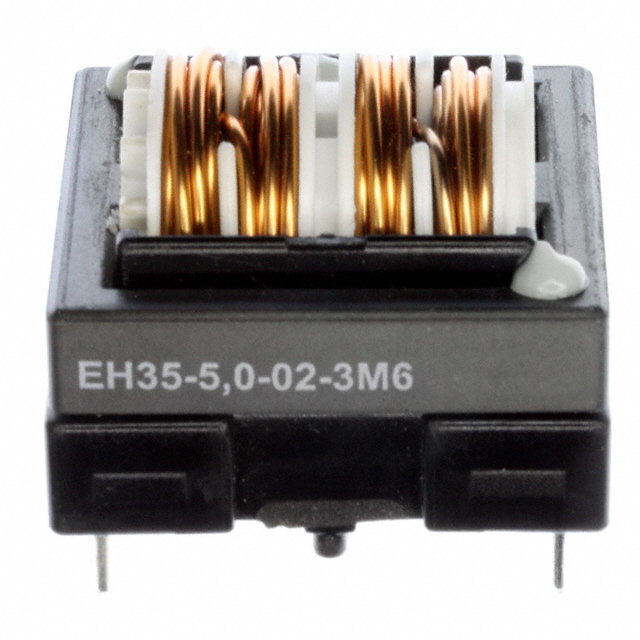

The Schaffner EH35-5.0-02-3M6 is a common mode choke designed for electromagnetic interference suppression in power lines. It features a nominal inductance of 3.6 mH and supports a maximum current rating of 5 A. The component operates with a maximum voltage of 250 VDC and utilizes PCB terminal termination types for both input and output connections. Designed for through-hole mounting, it adheres to Pollution Degree standards for industrial environments.
Feature Summary
- Provides effective suppression of electromagnetic interference on power lines
- Utilizes two-line configuration for balanced noise reduction
- Supports through-hole PCB mounting for secure integration
Applications
- Power supply input filtering
- Industrial control systems
- Electronic equipment EMI mitigation
Procurement Notes
Verify the specific inductance tolerance and saturation current characteristics against your circuit requirements before procurement. Confirm that the PCB terminal pitch matches your board layout specifications. Ensure the operating environment remains within the specified voltage and temperature limits to maintain performance integrity and safety compliance.
Selection Notes
Select this component when a 3.6 mH common mode choke is required for low-current applications up to 5 A. It is suitable for designs needing robust EMI suppression via through-hole technology. Consider the 250 VDC rating and Pollution Degree constraints when evaluating suitability for specific industrial or commercial power line environments.
Part Context
This component belongs to the EH series of RFI suppression chokes manufactured by Schaffner EMC Inc. The series is engineered for general-purpose electromagnetic interference filtering in electronic circuits. These components are widely used in industries requiring reliable noise reduction for sensitive power electronics and control systems.
FAQ
What is the maximum current rating for the EH35-5.0-02-3M6?
The maximum current rating is 5 A.
Does this component support surface mount technology?
No, it uses PCB terminal termination types designed for through-hole mounting.
