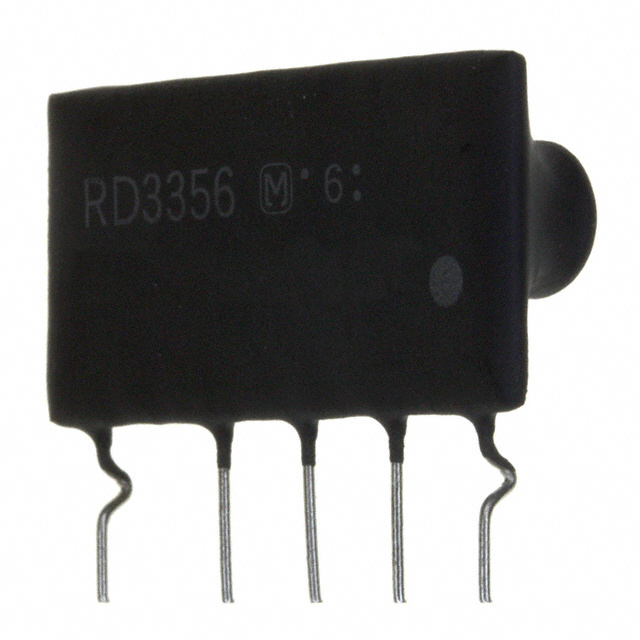

EHD-RD3356

EHD-RD3356 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Panasonic Electronic Components. Its product description is DC DC CONVERTER 20V 1W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for EHD-RD3356

• Description：DC DC CONVERTER 20V 1W
• Series：EHD-RD
• Mfr：Panasonic Electronic Components
• Package：Tray
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：113V
• Voltage - Input (Max)：170V
• Voltage - Output 1：20V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：80mA
• Power (Watts)：1 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-20°C ~ 70°C
• Efficiency：76%
• Mounting Type：Through Hole
• Package / Case：10-SIP Module, 5 Leads
• Size / Dimension：1.20" L x 0.39" W x 0.74" H (30.5mm x 10.0mm x 18.9mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for EHD-RD3356
