EHF-104-01-F-D-01

Headers, Male Pins Overview

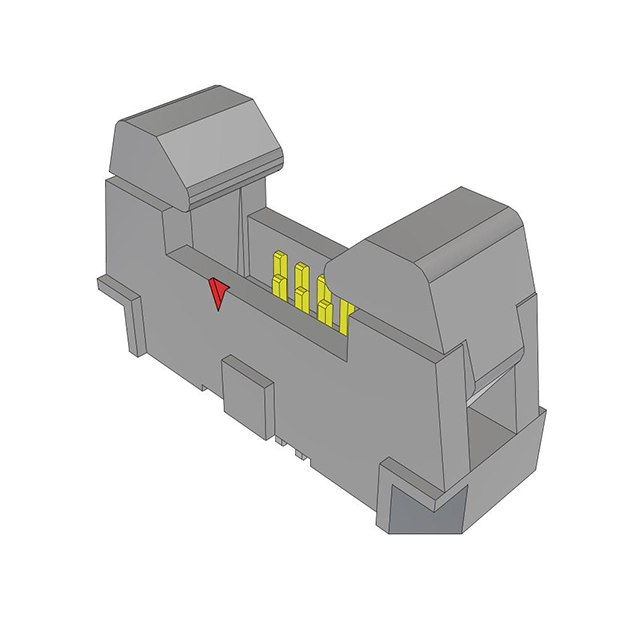

The EHF-104-01-F-D-01 is a .050" (1.27 mm) pitch double row shrouded IDC header with ejectors from the Samtec EHF series. It features 4 positions per row, totaling 8 contacts. The connector utilizes phosphor bronze terminals with gold plating on the mating interface and tin plating on the tail. Designed for through-hole mounting, it mates with FFSD ribbon cable assemblies. The insulator is constructed from black liquid crystal polymer (LCP), ensuring compliance with UL standards and RoHS directives.

Headers, Male Pins Feature Summary

• Integrated ejector mechanism facilitates secure cable retention and simplified assembly
• Shrouded design provides four-wall protection to ensure precise alignment during mating
• Gold-plated contact surfaces enhance conductivity and corrosion resistance for reliable signal transmission

Headers, Male Pins Applications

• High-density board-to-cable interconnections in telecommunications equipment
• Data acquisition systems requiring robust IDC connections
• Industrial control modules utilizing ribbon cable architectures

Headers, Male Pins Procurement Notes

Verify the specific suffix configuration against the official Samtec datasheet to confirm mechanical variations such as lead style or termination type. Ensure compatibility with mating FFSD cable assemblies before finalizing procurement orders. Cross-reference part numbers with authorized distributors to validate authenticity and supply chain integrity.

Headers, Male Pins Selection Notes

Select this component when a low-profile, high-reliability connection is required for ribbon cables. The ejector feature is critical for applications demanding frequent maintenance or high vibration resistance. Confirm that the PCB layout accommodates the through-hole footprint and that the mating cable assembly matches the .050" pitch specification.

Headers, Male Pins Part Context

This part belongs to the EHF series of shrouded IDC headers, designed specifically for use with FFSD and FFTP cable assemblies. The series offers various mounting options including surface mount and right-angle configurations. The EHF-104 variant represents a compact 4-position option within the broader family of high-speed interconnect solutions provided by Samtec.

Headers, Male Pins Replacement Considerations

EHF-104-01-F-D-SM

Headers, Male Pins FAQ

What is the mating cable assembly for this header?

The EHF-104-01-F-D-01 is designed to mate with FFSD Low Profile Tiger Eye IDC Ribbon Cable Assemblies.

Does this connector include an ejector mechanism?

Yes, the EHF series headers are fitted with integrated ejectors to secure the cable and simplify installation.
