EHF-113-01-S-D-SM-P-TR

Headers, Male Pins Overview

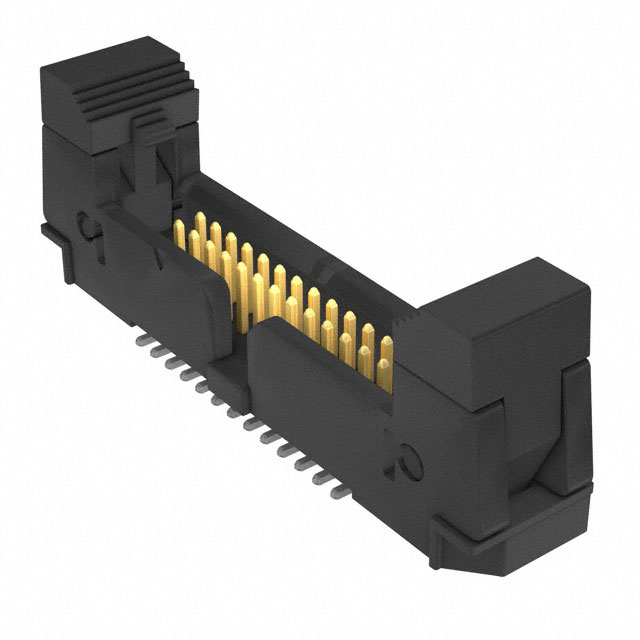

The EHF-113-01-S-D-SM-P-TR is a .050" (1.27mm) pitch Shrouded IDC Ejector Header manufactured by Samtec Inc. This component features a dual-row configuration with 13 positions per row, totaling 26 contacts. It utilizes surface mount termination and includes ejectors for secure mating. The connector operates within a temperature range of -55°C to +125°C and supports a current rating of 1.75A.

Headers, Male Pins Feature Summary

• Integrated ejector mechanism facilitates reliable connection engagement and disengagement
• Shrouded design ensures precise alignment during mating with compatible headers
• Surface mount termination enables automated PCB assembly processes

Headers, Male Pins Applications

• High-density board-to-board interconnections
• IDC cable assemblies requiring robust retention
• Automotive electronic control units
• Industrial communication modules

Headers, Male Pins Procurement Notes

Verify the specific suffix 'P-TR' confirms tape-and-reel packaging availability. Confirm RoHS compliance status matches project requirements. Ensure mating part compatibility with FFSD or FFTP series connectors as specified in official documentation.

Headers, Male Pins Selection Notes

Select this header when high-density connections are required alongside mechanical retention features. The shrouded design prevents misalignment during insertion. Surface mount termination suits automated manufacturing environments requiring consistent placement accuracy.

Headers, Male Pins Part Context

This component belongs to the EHF series of shrouded and ejector IDC headers. It mates specifically with FFSD and FFTP type strip connectors. The series provides reliable signal transmission in compact form factors suitable for modern electronics.

Headers, Male Pins Replacement Considerations

EHF-113-01-S-D-SM-P serves as an alternative tube-packaged version. Verify identical electrical and mechanical specifications before substitution.
