EHT-105-01-T-D-SM

Headers, Male Pins Overview

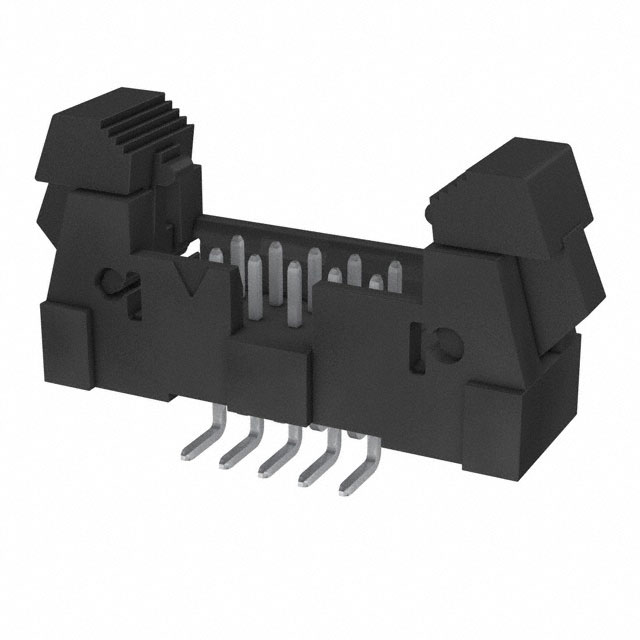

The EHT-105-01-T-D-SM is a 2.00 mm pitch shrouded IDC ejector header manufactured by Samtec Inc. This component features a double-row configuration with five positions per row, totaling ten contacts. It utilizes a surface-mount termination style for PCB integration. The housing is constructed from black liquid crystal polymer (LCP), and the contacts are made of phosphor bronze with tin plating. Designed for high-density interconnect applications, this header supports IDC cable assemblies and includes an integrated ejector mechanism to facilitate secure mating and reliable disconnection.

Headers, Male Pins Feature Summary

• Integrated ejector mechanism for secure mating and easy disconnection
• Shrouded design provides alignment and protection during assembly
• Surface-mount termination enables automated PCB placement
• High-density 2.00 mm pitch accommodates compact layouts

Headers, Male Pins Applications

• IDC cable assembly connections
• Board-to-board interconnects requiring ejection capability
• Compact electronic device internal wiring
• High-density signal routing in consumer electronics

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against official Samtec documentation to confirm contact plating, material specifications, and packaging type. Ensure the selected variant matches the required termination style and mechanical retention features for the target application. Cross-reference the part number with current manufacturer catalogs to validate availability and compliance status before procurement.

Headers, Male Pins Selection Notes

Select this component when a shrouded IDC header with an ejector feature is required for 2.00 mm pitch applications. Confirm that the surface-mount footprint aligns with the PCB design constraints. Evaluate the need for the ejector mechanism versus standard headers based on maintenance requirements and assembly workflow efficiency.

Headers, Male Pins Part Context

This part belongs to the EHT series of shrouded IDC ejector headers. The series offers various pitch options and termination styles to support diverse interconnect needs. The EHT-105-01-T-D-SM specifically addresses applications requiring robust connection retention and ease of serviceability through its built-in ejection system.

Headers, Male Pins Replacement Considerations

Consult official Samtec substitution guides for verified alternatives. Generic equivalents may not replicate the precise ejector mechanics or shrouding dimensions. Validate pin compatibility and mechanical fit before replacing the original component.
