EJH-106-01-L-D-TH

$4.79

Description：CONN HEADER VERT 12POS 2.54MM
Series：EJH
Mfr：Samtec Inc.
Package：Tube

SKU:c833b07b8073 Category: Headers, Male Pins Brand: Samtec Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

EJH-106-01-L-D-TH is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HEADER VERT 12POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for EJH-106-01-L-D-TH

Description：CONN HEADER VERT 12POS 2.54MM
Series：EJH
Mfr：Samtec Inc.
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：12
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Latch Lock/Eject Hooks
Contact Length - Mating：0.225" (5.72mm)
Contact Length - Post：0.120" (3.05mm)
Overall Contact Length：-
Insulation Height：0.500" (12.70mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：10.0µin (0.25µm)
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：Liquid Crystal Polymer (LCP)
Features：Keying Slot
Operating Temperature：-55°C ~ 125°C
Ingress Protection：-
Material Flammability Rating：-
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：-

Headers, Male Pins datasheet and documents for EJH-106-01-L-D-TH

EJH-106-01-L-D-TH

Headers, Male Pins Overview

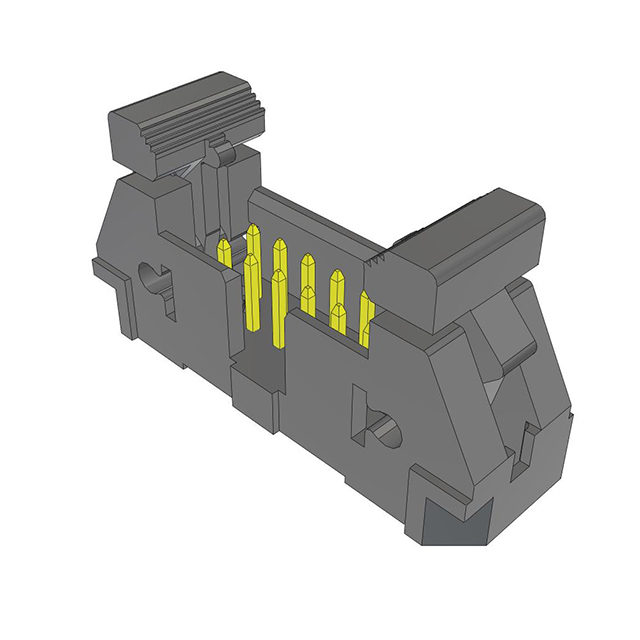

The EJH-106-01-L-D-TH is a .100" (2.54 mm) pitch shrouded IDC ejector header manufactured by Samtec. This double-row connector features 12 positions with gold-plated phosphor bronze contacts and a natural polyester insulator. Designed for through-hole mounting, it operates within a temperature range of -55°C to +125°C. The component includes a polarization notch to prevent misalignment and utilizes a rugged retention system for secure mating.

Headers, Male Pins Feature Summary

Shrouded design with integrated ejector mechanism for reliable mating
Polarization notch ensures correct orientation during assembly
Gold-plated contacts provide durable electrical performance

Headers, Male Pins Applications

Board-to-board interconnects requiring high reliability
IDC cable assemblies in industrial environments
High-cycle connection applications

Headers, Male Pins Procurement Notes

Verify the specific suffix 'TH' confirms through-hole termination against the official datasheet. Confirm that the pin count and row configuration match the design requirements. Check RoHS compliance status and moisture sensitivity level before integration into the manufacturing process.

Headers, Male Pins Selection Notes

Select this component when a shrouded header with an ejector feature is required for .100" pitch applications. Ensure the mating connector supports the IDC interface and matches the polarization notch location. Consider the operating temperature range and current rating for the specific circuit load.

Headers, Male Pins Part Context

This part belongs to the EJH series of .100" shrouded IDC ejector headers. It complements other Samtec connectors like the IDSD and HCSD series. The series offers various mounting styles and pin counts for flexible board-to-cable connectivity solutions.
