EJH-115-02-S-D-SM-P-TR

Headers, Male Pins Overview

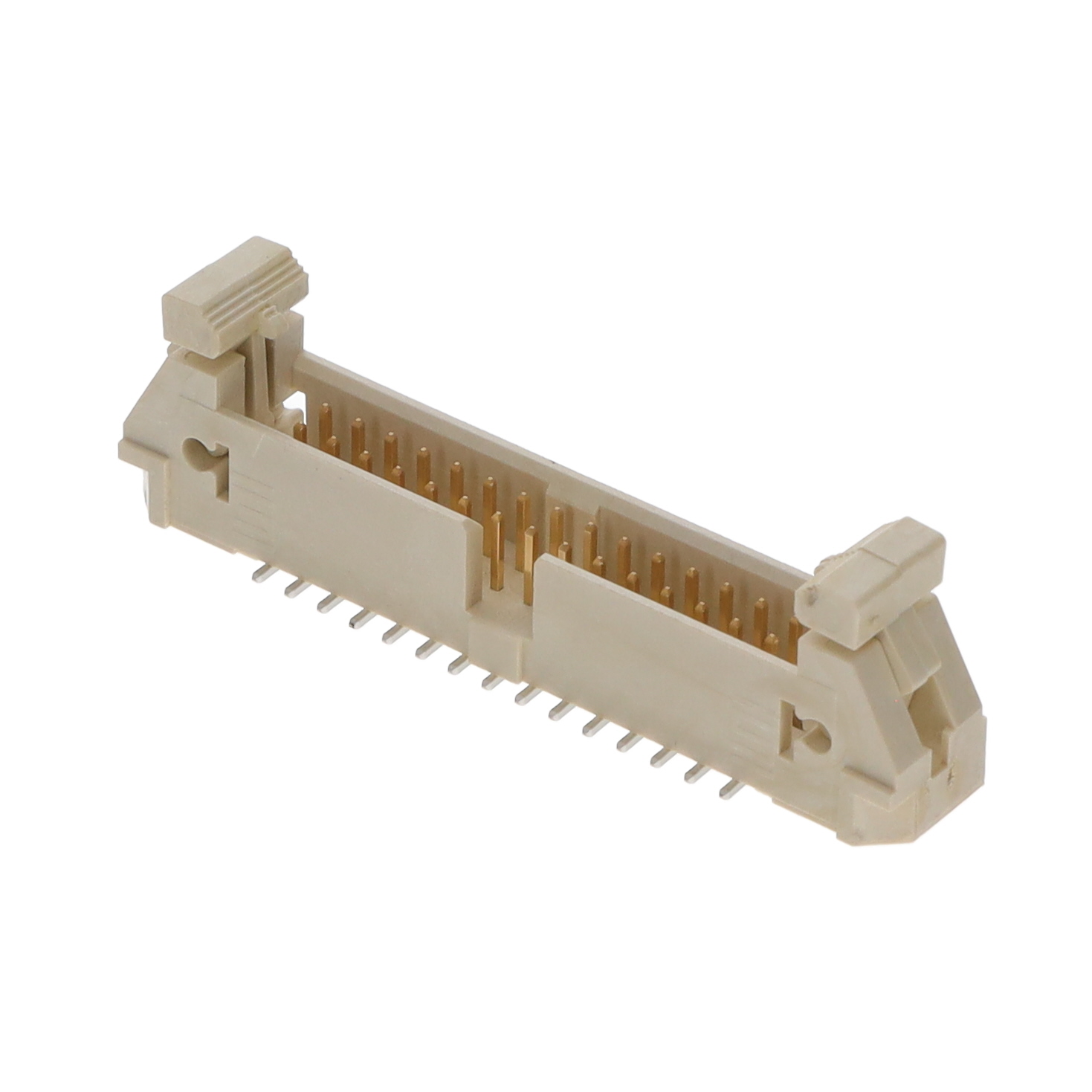

The EJH-115-02-S-D-SM-P-TR is a board connector featuring 30 contacts arranged in 2 rows. It is a male, straight receptacle with a 0.1 inch (2.54 mm) pitch and surface mount terminals. The component includes latch and eject functionality. Contact plating is gold over nickel on the interface, while the termination uses tin with a nickel barrier. The insulator material is liquid crystal polymer.

Headers, Male Pins Feature Summary

• Integrates latch and eject mechanisms for secure mating and easy removal
• Features shrouded design to ensure correct alignment during insertion
• Includes pick-and-place pads to facilitate automated assembly processes

Headers, Male Pins Applications

• High-density electronic interconnections
• Automated surface mount manufacturing lines
• Industrial control system backplanes

Headers, Male Pins Procurement Notes

Verify that the specific suffixes match the required configuration, particularly the tape and reel packaging indicated by TR and the pick-and-place pad option denoted by P. Confirm the contact count aligns with the model number sequence. Ensure compliance with RoHS standards and check for halogen-free requirements if applicable to the target application environment.

Headers, Male Pins Selection Notes

Select this component when a shrouded, double-row header with integrated ejection features is required for surface mount applications. The inclusion of pick-and-place pads supports high-volume automated assembly. Verify that the straight orientation and 0.1-inch pitch fit the PCB layout constraints and mating connector specifications.

Headers, Male Pins Part Context

This part belongs to the EJH series of .100" pitch ejector headers manufactured by Samtec. The series offers various mounting styles and contact counts. This specific variant combines surface mount technology with mechanical retention features, distinguishing it from standard IDC or through-hole variants within the broader product family.

Headers, Male Pins Replacement Considerations

Direct substitutes include other EJH-115-02-S-D-SM variants with matching electrical and mechanical parameters. Cross-reference options such as EJH-115-02-S-D-SM without the pick-and-place pads if automation is not required. Verify pinout compatibility before replacing.
