EKSS16064

Overview

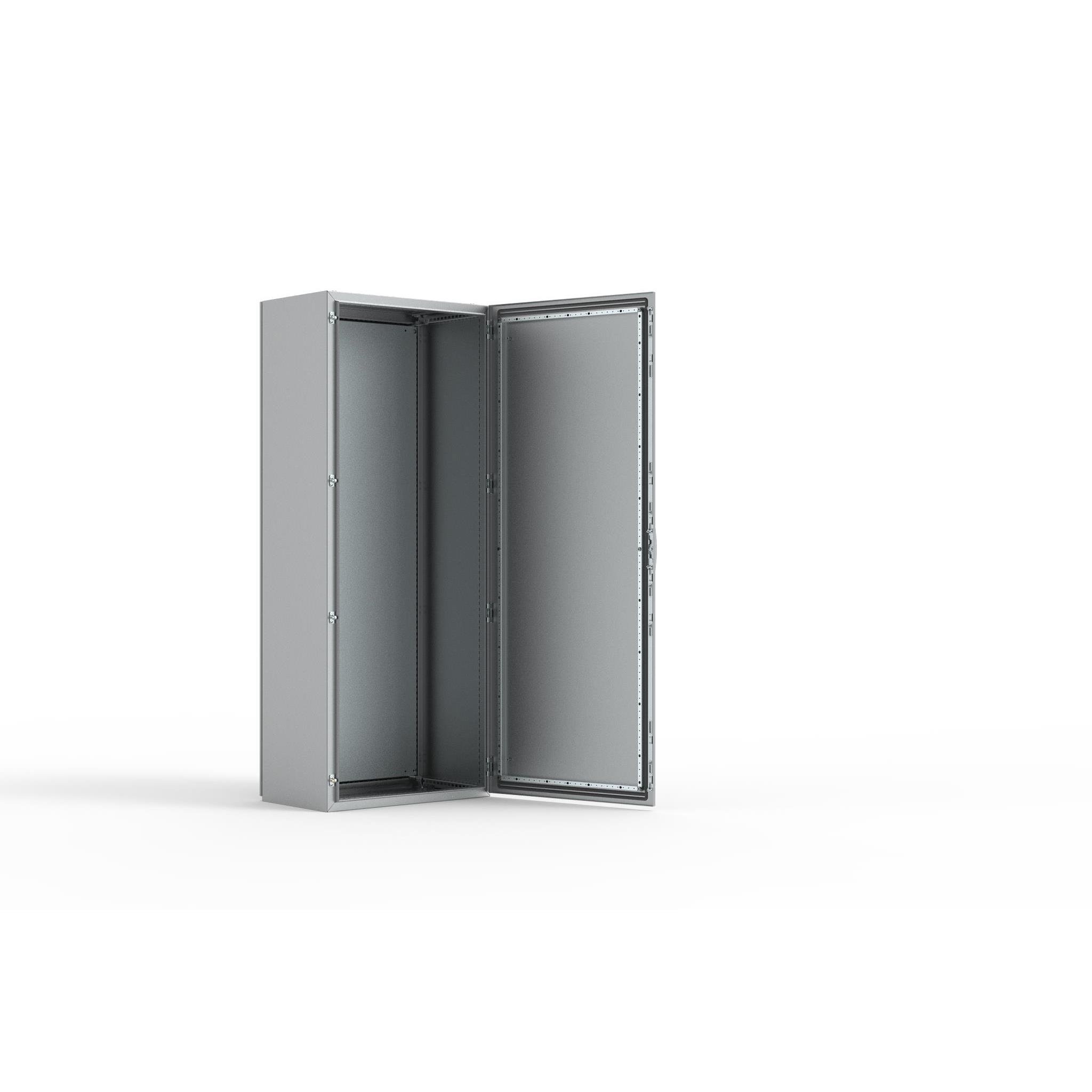

The EKSS16064 is a floor-standing enclosure from the nVent Hoffman EKSS Series, constructed from AISI 304 pre-grained stainless steel. It features opaque door design with IP66 ingress protection rating. The unit measures 1600 mm in height, 600 mm in width, and 400 mm in depth. The body and removable rear panel are fabricated from 1.5 mm thick material, while the door utilizes 2 mm thickness for enhanced durability. This configuration supports secure housing for industrial electronic components in demanding environments.

Feature Summary

• Constructed from AISI 304 pre-grained stainless steel for corrosion resistance
• IP66 rated to protect against dust and powerful water jets
• Features an opaque single-door design with a removable rear panel
• Floor-standing form factor suitable for heavy-duty industrial applications

Applications

• Industrial automation control panels
• Outdoor machinery housing
• Food and beverage processing equipment enclosures
• Chemical plant instrumentation protection

Procurement Notes

Verify the specific material grade (AISI 304 vs 316L) required for your application environment, as variants exist within the EKSS series. Confirm that the standard dimensions of 1600x600x400 mm align with your spatial constraints. Ensure compatibility with any necessary internal mounting rails or accessories before finalizing the order.

Selection Notes

Select this model when high corrosion resistance and strict ingress protection are required for floor-mounted installations. The 1.5 mm body and 2 mm door provide structural integrity for heavy equipment. Consider the EKSS16064-316 variant if exposure to harsher corrosive agents necessitates the use of AISI 316L stainless steel instead of standard 304.

Part Context

This component belongs to the EKSS Series, which specializes in stainless steel enclosures for extreme environments. The series offers various sizes and configurations, including wall-mount and floor-standing options. The EKSS16064 specifically addresses the need for robust, large-capacity housing solutions where hygiene and durability are critical operational factors.

Replacement Considerations

EKSS16064-316 is a confirmed substitute part number offering identical dimensions but utilizing AISI 316L stainless steel for superior chemical resistance.
