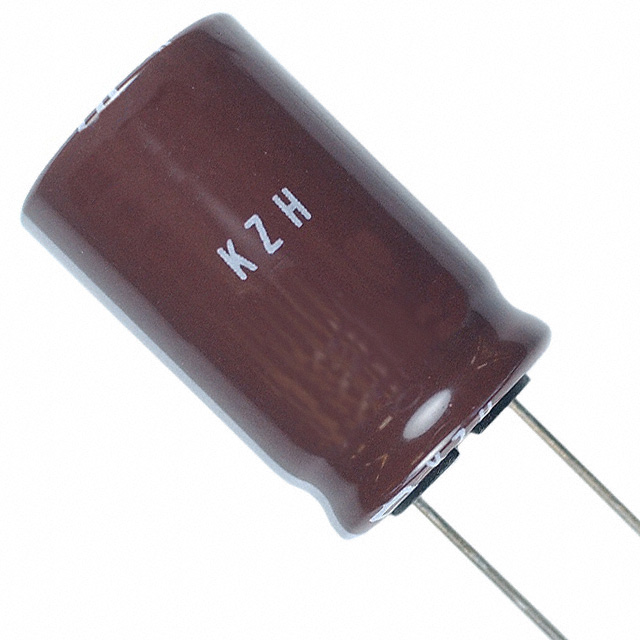

EKZH350ELL471MJ16S is listed in the Aluminum Electrolytic Capacitors range at ChipApex. The manufacturer field lists Chemi-Con. Its product description is CAP ALUM 35V POLAR. Review the specifications below when checking this part for your BOM.
Aluminum Electrolytic Capacitors specifications for EKZH350ELL471MJ16S
- Description：CAP ALUM 35V POLAR
- Series：KZH
- Mfr：Chemi-Con
- Package：Bulk
- Capacitance：470 µF
- Tolerance：±20%
- Voltage - Rated：35 V
- ESR (Equivalent Series Resistance)：-
- Lifetime @ Temp.：5000 Hrs @ 105°C
- Operating Temperature：-40°C ~ 105°C
- Polarization：Polar
- Ratings：-
- Applications：General Purpose
- Ripple Current @ Low Frequency：825 mA @ 120 Hz
- Ripple Current @ High Frequency：1.65 A @ 100 kHz
- Lead Spacing：0.197" (5.00mm)
- Size / Dimension：0.394" Dia (10.00mm)
- Height - Seated (Max)：0.689" (17.50mm)
- Surface Mount Land Size：-
- Mounting Type：Through Hole
- Package / Case：Radial, Can
- Impedance：32 mOhms
Aluminum Electrolytic Capacitors datasheet and documents for EKZH350ELL471MJ16S
