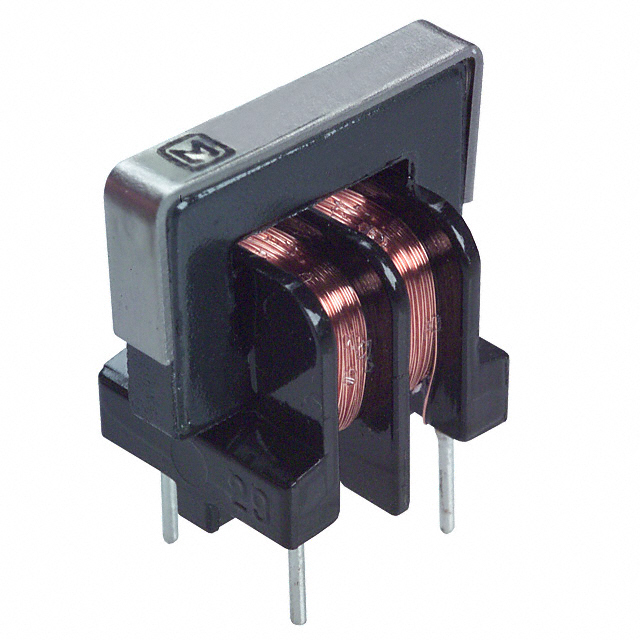

ELF-11M020E is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Panasonic Electronic Components. Its product description is CMC 200MA 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for ELF-11M020E
- Description：CMC 200MA 2LN TH
- Series：M
- Mfr：Panasonic Electronic Components
- Package：Bulk
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：200mA
- DC Resistance (DCR) (Max)：4.3Ohm (Typ)
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.630" L x 0.413" W (16.00mm x 10.50mm)
- Height (Max)：0.669" (17.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：-
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Common Mode Chokes datasheet and documents for ELF-11M020E
Common Mode Chokes Overview
The ELF-11M020E is a common mode choke manufactured by Panasonic Industry, designed for power line filtering applications. This component belongs to the M Series Type 11M Line Filter family and utilizes a through-hole mounting configuration. It features a typical DC resistance of 4.3 Ohms and supports a current rating of 200mA. The inductance value is specified at 12mH. The device is classified under Common Mode Chokes within the Inductors, Chokes & Coils subcategory.
Common Mode Chokes Feature Summary
- Provides common mode noise suppression for power lines
- Designed for through-hole PCB mounting
- Part of the standardized M Series Type 11M Line Filter family
Common Mode Chokes Applications
- Power line filtering
- Common mode noise reduction in electronic circuits
Common Mode Chokes Procurement Notes
Verify component authenticity through authorized distributors or official Panasonic channels. Confirm that the received part matches the ELF-11M020E designation and packaging specifications. Check RoHS compliance documentation as indicated in official datasheets. Ensure storage conditions maintain component integrity prior to assembly.
Common Mode Chokes Selection Notes
Select this component when designing circuits requiring common mode chokes with specific inductance and current ratings. Consider the through-hole package type for mechanical stability. Evaluate the 4.3 Ohm DC resistance and 200mA current capacity against circuit requirements. Compare against other M Series Type 11M variants if different electrical parameters are needed.
Common Mode Chokes Part Context
This component is part of Panasonic's industrial electronic components portfolio, specifically within the inductors and filters category. The M Series Type 11M represents a standardized line filter design intended for reliable performance in various electronic applications. Panasonic Industry serves as the manufacturer division responsible for these industrial-grade components.
Common Mode Chokes Replacement Considerations
Consult official Panasonic documentation for confirmed substitute part numbers. Verify compatibility regarding inductance, current rating, and physical dimensions before substitution.
