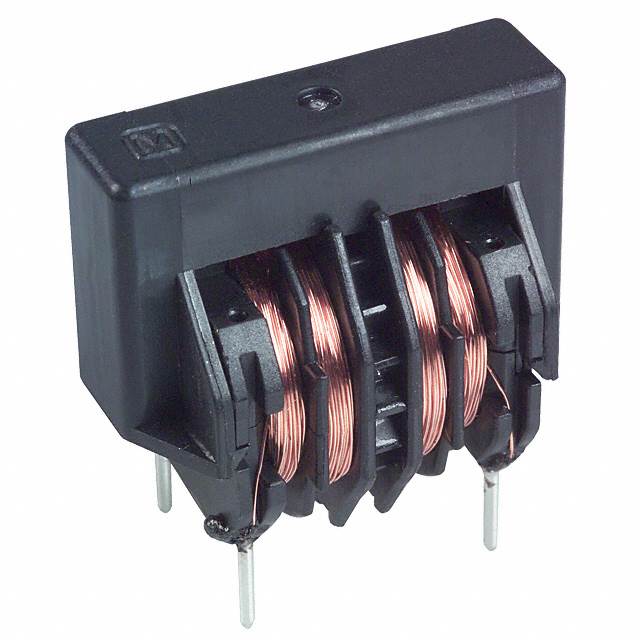

ELF-15N002A is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Panasonic Electronic Components. Its product description is CMC 200MA 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for ELF-15N002A
- Description：CMC 200MA 2LN TH
- Series：N
- Mfr：Panasonic Electronic Components
- Package：Bulk
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：200mA
- DC Resistance (DCR) (Max)：7.543Ohm (Typ)
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.591" L x 0.894" W (15.00mm x 22.70mm)
- Height (Max)：0.886" (22.50mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：-
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Common Mode Chokes datasheet and documents for ELF-15N002A
Common Mode Chokes Overview
The ELF-15N002A is a common mode choke manufactured by Panasonic Electronic Components, designed for through-hole mounting applications. It features dual lines with an inductance of 104mH and a rated current of 200mA. The component exhibits a DC resistance of 7.543 Ohms and has a maximum height of 22.50mm. This part is classified as obsolete and discontinued.
Common Mode Chokes Feature Summary
- Dual-line common mode choke design for electromagnetic interference suppression
- Through-hole mounting configuration for PCB integration
- High inductance value for effective noise filtering
Common Mode Chokes Applications
- Electronic devices requiring EMI suppression
- AC line filter circuits
- Power supply input stages
Common Mode Chokes Procurement Notes
This component is officially listed as obsolete and discontinued by the manufacturer. Availability is limited to existing stock or third-party distributors. Verify part status and authenticity carefully before procurement due to end-of-life status.
Common Mode Chokes Selection Notes
Consider alternative components from the same series or newer generations if long-term supply stability is required. Evaluate electrical parameters such as inductance and current rating against circuit requirements when selecting substitutes.
Common Mode Chokes Part Context
The ELF-15N002A belongs to the ELF-15N series of common mode chokes produced by Panasonic Electronic Components. These components are engineered for noise reduction in electronic systems, specifically targeting differential mode and common mode interference in power lines.
Common Mode Chokes Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Users should consult official Panasonic resources or authorized distributors for potential equivalent components.
