ELF-17N013A

Common Mode Chokes Overview

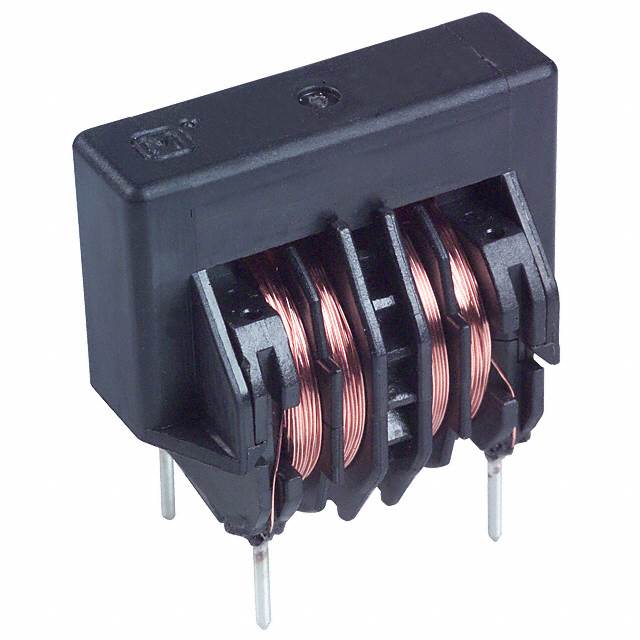

The ELF-17N013A is a common mode choke from the N Series by Panasonic Electronic Components. It features a through-hole mounting configuration with two lines. The component has a typical DC resistance (DCR) of 202 milliohms and supports a current rating of 1.3 Amperes.

Common Mode Chokes Feature Summary

• Two-line common mode filtering capability
• Through-hole mounting construction

Common Mode Chokes Applications

• AC line filter applications
• Common mode noise suppression in electronic circuits

Common Mode Chokes Procurement Notes

Verify the specific datasheet version for the ELF-17N013A to confirm current production status, as some sources indicate potential end-of-life or production transfer notices for the ELF-17N series. Ensure compatibility with required current ratings and physical mounting constraints before finalizing procurement decisions.

Common Mode Chokes Selection Notes

Select this component when designing circuits requiring common mode noise reduction for two-line configurations. Consider the 1.3A current rating and 202mOhm DCR specifications to ensure they align with the circuit's operational requirements and thermal management capabilities.

Common Mode Chokes Part Context

This part belongs to the ELF-17N series of common mode chokes manufactured by Panasonic Electronic Components. The series is designed for line filter applications, providing noise suppression for electronic equipment. The ELF-17N013A specifically denotes a variant within this family with defined electrical characteristics.

Common Mode Chokes Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify cross-references with official Panasonic resources or authorized distributors for compatible alternatives.
