ELF-18D609 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Panasonic Electronic Components. Its product description is CMC 12MH 1.3A 2LN TH. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for ELF-18D609
- Description：CMC 12MH 1.3A 2LN TH
- Series：H
- Mfr：Panasonic Electronic Components
- Package：Bulk
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：1.3A
- DC Resistance (DCR) (Max)：309mOhm (Typ)
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-20°C ~ 105°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.122" L x 1.142" W (28.50mm x 29.00mm)
- Height (Max)：0.925" (23.50mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：12 mH @ 1 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Common Mode Chokes datasheet and documents for ELF-18D609
Common Mode Chokes Overview

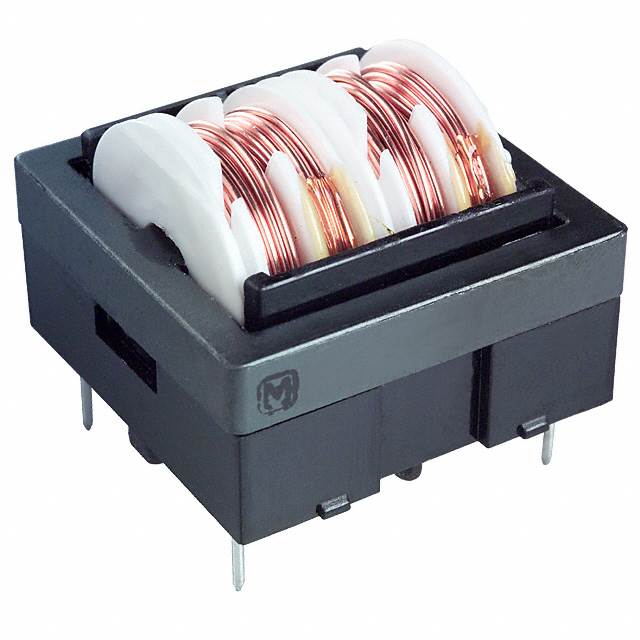

The Panasonic ELF-18D609 is a through-hole common mode choke designed for two-line applications. It features an inductance of 12 mH measured at 1 kHz and supports a current rating of 1.3 A. The component exhibits a typical DC resistance (DCR) of 309 mΩ. This filter is engineered to suppress electromagnetic interference in power circuits, providing effective noise reduction for sensitive electronic systems requiring reliable signal integrity.
Common Mode Chokes Feature Summary
- Provides common mode noise suppression for two-line configurations
- Utilizes through-hole mounting technology for secure PCB integration
- Engineered for high inductance stability at standard test frequencies
Common Mode Chokes Applications
- Power supply input filtering
- Industrial equipment EMI suppression
- Consumer electronics noise reduction
Common Mode Chokes Procurement Notes
Verify the specific manufacturer part number against official Panasonic Industry documentation to ensure authenticity. Confirm that the required inductance and current ratings align with your circuit design specifications before procurement. Check for RoHS compliance status as indicated in the latest datasheet versions.
Common Mode Chokes Selection Notes
Select this component when a 12 mH inductance is required for common mode noise filtering in two-line power applications. Ensure the PCB layout accommodates through-hole mounting and that the 1.3 A current rating meets the operational load requirements without saturation.
Common Mode Chokes Part Context
This component belongs to the ELF series of line filters manufactured by Panasonic Industry. The series offers various inductance values and current ratings tailored for different electromagnetic interference suppression needs across industrial and consumer electronics sectors.
Common Mode Chokes Replacement Considerations
Consult official Panasonic Industry substitution guides for verified equivalent parts. Cross-reference inductance, current rating, and physical dimensions to ensure compatibility with existing board layouts and performance requirements.
