ELF-18D656K

Common Mode Chokes Overview

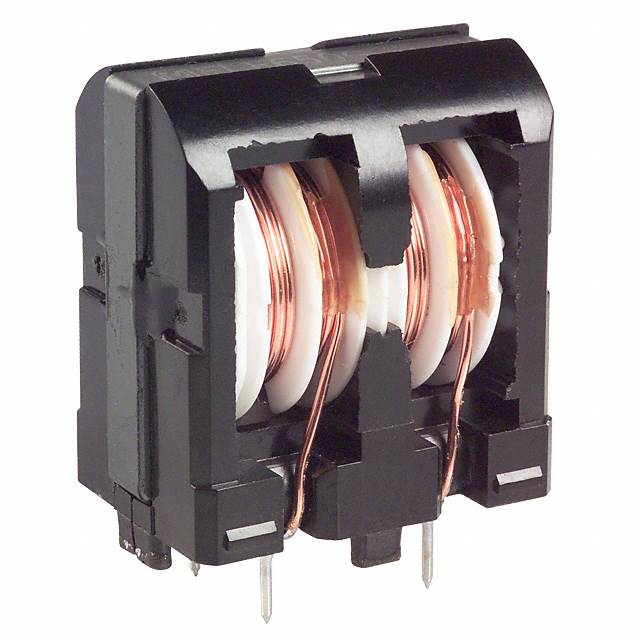

The Panasonic ELF-18D656K is a common mode choke designed for noise suppression in electronic circuits. It features a two-line configuration with a rated current of 2A. The component utilizes a through-hole mounting technology, ensuring secure attachment to printed circuit boards. It is constructed to be lead-free and compliant with RoHS standards, supporting environmentally conscious manufacturing processes.

Common Mode Chokes Feature Summary

• Two-line common mode filtering capability
• Through-hole mounting construction
• RoHS compliant and lead-free design

Common Mode Chokes Applications

• General electronic circuit noise suppression
• Power supply line filtering
• Signal integrity protection in consumer electronics

Common Mode Chokes Procurement Notes

Verify the specific suffix 'K' against official Panasonic documentation to confirm exact tolerance or packaging specifications. Ensure compatibility with existing through-hole assembly processes. Confirm RoHS compliance status for the specific batch if required by regulatory standards.

Common Mode Chokes Selection Notes

Select this component when a 2A rated common mode choke is required for through-hole applications. Consider the physical size constraints of the PCB layout. Evaluate the frequency range of interference to ensure effective attenuation at target frequencies.

Common Mode Chokes Part Context

This part belongs to Panasonic's lineup of passive components, specifically within the inductor and choke category. It serves as a solution for electromagnetic interference (EMI) reduction in various electronic devices requiring robust noise filtering capabilities.

Common Mode Chokes Replacement Considerations

Consult official Panasonic substitution guides for verified alternatives. Generic equivalents may differ in core material or saturation characteristics.
