ELF-22V030A

Common Mode Chokes Overview

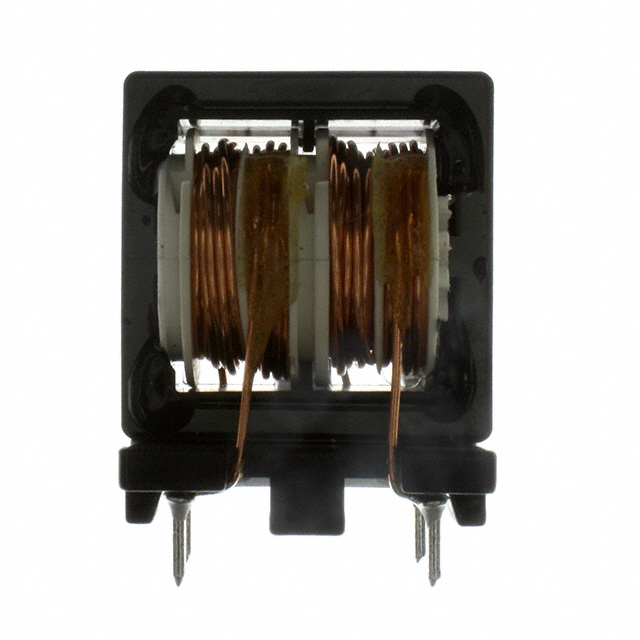

The ELF-22V030A is a through-hole common mode choke from the Panasonic V series, designed for two-line applications. It features a rated current of 3.0 A and an inductance value associated with its standard configuration within the ELF-22V series lineup.

Common Mode Chokes Feature Summary

• Through-hole mounting construction for robust PCB integration
• Two-line configuration for differential signal or power line filtering
• Standard performance variant within the ELF-22V product family

Common Mode Chokes Applications

• Industrial automation control systems
• Power supply input filtering
• General electronic equipment noise suppression

Common Mode Chokes Procurement Notes

Verify the specific datasheet version and manufacturing location before ordering, as specifications may change without notice. Confirm availability status directly with authorized distributors, as this component type may be subject to end-of-life or discontinuation notices. Ensure the through-hole package dimensions match the target PCB footprint design requirements.

Common Mode Chokes Selection Notes

Select this component when a 3.0 A rated current capacity is required for common mode noise reduction in through-hole designs. Compare against the ELF-22V030C variant if high-frequency performance characteristics are necessary instead of standard operation. Ensure the voltage rating and physical height constraints fit the assembly space.

Common Mode Chokes Part Context

This component belongs to the ELF-22V series of common mode chokes manufactured by Panasonic Electronic Components. The series includes various current ratings and configurations, such as the ELF-22V030C for high-frequency applications. These components are typically used in environments requiring reliable electromagnetic interference suppression.

Common Mode Chokes Replacement Considerations

The ELF-22V030C is documented as a related model within the same series, offering high-frequency performance characteristics. Verify electrical compatibility and physical dimensions before substituting.
