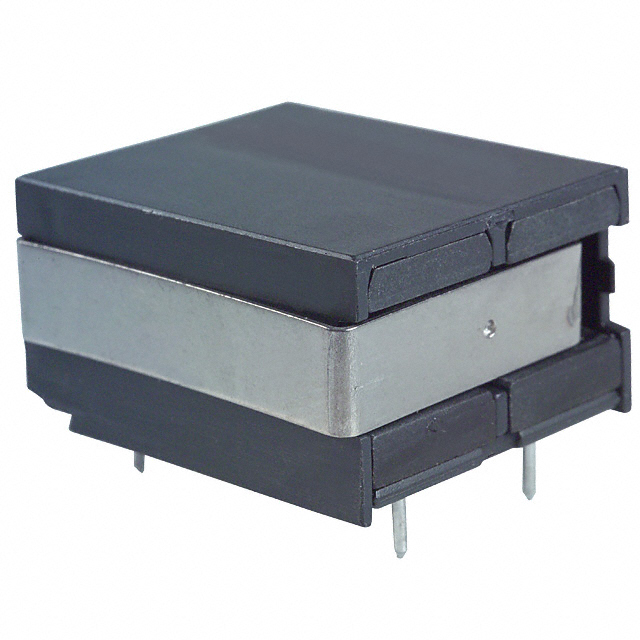

ELF-25F107A

Description：CMC 700MA 2LN TH
Series：F
Mfr：Panasonic Electronic Components
Package：Bulk

SKU:74d4d1c855fa Category: Common Mode Chokes Brand: Panasonic Electronic Components

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ELF-25F107A is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Panasonic Electronic Components. Its product description is CMC 700MA 2LN TH. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for ELF-25F107A

Description：CMC 700MA 2LN TH
Series：F
Mfr：Panasonic Electronic Components
Package：Bulk
Filter Type：-
Number of Lines：2
Current Rating (Max)：700mA
DC Resistance (DCR) (Max)：940mOhm (Typ)
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.102" L x 0.984" W (28.00mm x 25.00mm)
Height (Max)：0.591" (15.00mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：-
Impedance @ Frequency：-
Qualification：-
Grade：-

Common Mode Chokes datasheet and documents for ELF-25F107A

ELF-25F107A

Common Mode Chokes Overview

The Panasonic ELF-25F107A is a single-phase EMI line filter designed for through-hole mounting. It features an inductance of 1.3 mH and a rated current of 2.5 A. The component has a DC resistance of 940 mOhm (typical) and operates within a temperature range defined by its construction. Physical dimensions are 28 mm length, 25 mm width, and 15 mm height. It utilizes tin/copper terminal plating and complies with RoHS standards.

Common Mode Chokes Feature Summary

Single-phase EMI filtering capability
Through-hole mount construction
Tin/copper terminal plating

Common Mode Chokes Applications

Line filtering in electronic circuits
EMI suppression applications

Common Mode Chokes Procurement Notes

Verify the specific part number suffix against official Panasonic documentation to ensure correct inductance and current ratings. Confirm that the physical footprint matches the recommended PCB piercing plan provided in the datasheet. Ensure compliance with local environmental regulations regarding RoHS certification before procurement.

Common Mode Chokes Selection Notes

Select this component when single-phase EMI filtering is required for currents up to 2.5 A. Consider the 1.3 mH inductance value for appropriate noise attenuation. Verify that the through-hole package fits the available board space and that the operating temperature range meets the application requirements.

Common Mode Chokes Part Context

This component belongs to the Panasonic ELF series of line filters. These filters are engineered for electromagnetic interference suppression in AC power lines. The series offers various inductance values and current ratings to suit different power supply designs and noise environments.
