ELL-8TP100MB is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Panasonic Electronic Components. Its product description is FIXED IND 10UH 3A 25 MOHM SMD. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for ELL-8TP100MB
- Description：FIXED IND 10UH 3A 25 MOHM SMD
- Series：P
- Mfr：Panasonic Electronic Components
- Package：Tape & Reel (TR),Cut Tape (CT)
- Type：Wirewound
- Material - Core：-
- Inductance：10 µH
- Tolerance：±20%
- Current Rating (Amps)：3:00 AM
- Current - Saturation (Isat)：3A
- Shielding：Shielded
- DC Resistance (DCR)：25mOhm
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-40°C ~ 105°C
- Inductance Frequency - Test：100 kHz
- Mounting Type：Surface Mount
- Package / Case：Nonstandard, Corner Terminals
- Supplier Device Package：-
- Size / Dimension：0.315" L x 0.315" W (8.00mm x 8.00mm)
- Height - Seated (Max)：0.197" (5.00mm)
- Features：-
Fixed Inductors datasheet and documents for ELL-8TP100MB
Fixed Inductors Overview

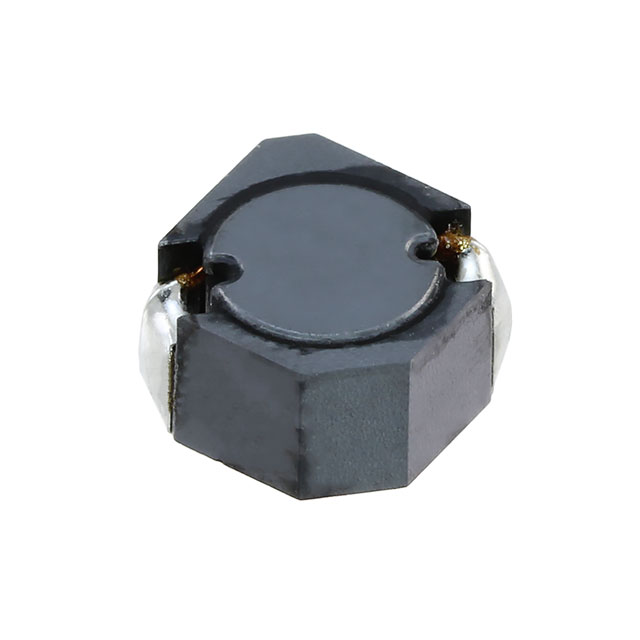

The Panasonic ELL-8TP100MB is a surface-mount power inductor from the ELL-8TP series. It features a wirewound construction with shielded design to minimize electromagnetic interference. The component provides an inductance of 10 uH with a tolerance of ±20%. It supports a maximum DC current of 3.0 A and has a maximum DC resistance of 25 mOhms. The physical dimensions are 8 mm in length, 8 mm in width, and 5 mm in height. The device utilizes standard SMD/SMT termination style for PCB mounting.
Fixed Inductors Feature Summary
- Shielded wirewound construction reduces magnetic field interference
- Designed for high-current applications up to 3.0 A
- Compact surface-mount footprint suitable for space-constrained designs
Fixed Inductors Applications
- Power supply choke coils
- DC-DC converter circuits
- Signal filtering in electronic systems
Fixed Inductors Procurement Notes
This component is officially discontinued and no longer manufactured by Panasonic Industry. Verification of availability should focus on obsolete stock or authorized distributors holding remaining inventory. Substitution planning is required as new production units are not available. Confirm RoHS compliance status through archived datasheets if necessary for legacy system maintenance.
Fixed Inductors Selection Notes
Engineers replacing this part must consider the discontinuation status when designing new hardware. Alternative components should match the 10 uH inductance, 3.0 A current rating, and 8x8x5 mm package dimensions. Verify that substitute parts offer comparable shielding and saturation characteristics to ensure circuit stability in power management applications.
Fixed Inductors Part Context
The ELL-8TP100MB belongs to the ELL-8TP series of fixed power inductors produced by Panasonic Electronic Components. This series is characterized by its compact size and robust performance for consumer electronics. The specific model offers a balance of low resistance and high current handling within a small form factor, typical of the manufacturer's passive component portfolio.
Fixed Inductors Replacement Considerations
Public confirmed substitutes include similar models from the same family such as the ELL-8TP101MB or ELL-8TP820MB, though parameters differ. Cross-reference with other manufacturers' 8x8mm shielded power inductors rated for 10uH/3A.
