EM004LXQBDH13CS1T

$13.08

Description：IC RAM 4MB XSPI/QUAD 8DFN
Series：EMxxLX
Mfr：Everspin Technologies Inc.
Package：Tray

SKU:8ff10e267ff7 Category: Memory IC Brand: Everspin Technologies Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

EM004LXQBDH13CS1T is listed in the Memory IC range at ChipApex. The manufacturer field lists Everspin Technologies Inc.. Its product description is IC RAM 4MB XSPI/QUAD 8DFN. Review the specifications below when checking this part for your BOM.

Memory IC specifications for EM004LXQBDH13CS1T

Description：IC RAM 4MB XSPI/QUAD 8DFN
Series：EMxxLX
Mfr：Everspin Technologies Inc.
Package：Tray
Memory Type：Non-Volatile
Memory Format：RAM
Technology：MRAM (Magnetoresistive RAM)
Memory Size：4Mbit
Memory Organization：512K x 8
Memory Interface：SPI - Quad I/O
Clock Frequency：133 MHz
Write Cycle Time - Word, Page：-
Voltage - Supply：1.65V ~ 2V
Operating Temperature：0°C ~ 70°C (TA)
Mounting Type：Surface Mount

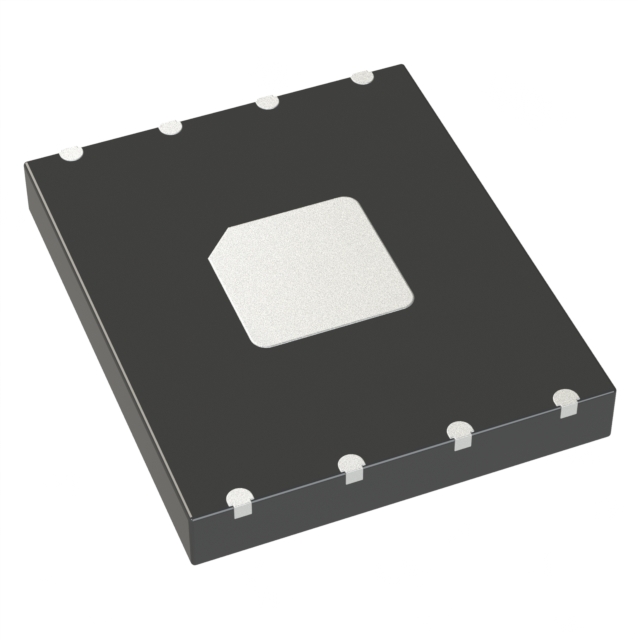

Package / Case：8-VDFN Exposed Pad
Supplier Device Package：8-DFN (5x6)
Access Time：-
Grade：-
Qualification：-

Memory IC datasheet and documents for EM004LXQBDH13CS1T

EM004LXQBDH13CS1T

Memory IC Overview

The EM004LXQBDH13CS1T is a 4 Mbit Magnetoresistive Random Access Memory (MRAM) integrated circuit manufactured by Everspin Technologies. It features a Quad SPI interface operating at clock frequencies up to 133 MHz. The device provides a memory organization of 512 k x 8 bits and operates within a supply voltage range of 1.65 V to 2 V. It is housed in an 8-DFN package with surface mount installation style, designed for industrial temperature ranges from 0°C to +70°C.

Memory IC Feature Summary

Non-volatile MRAM technology providing infinite endurance without write cycle limitations
Quad SPI interface supporting high-speed data transfer rates up to 133 MHz
Low voltage operation compatible with 1.65 V to 2 V power supplies
Compact 8-DFN surface mount package design

Memory IC Applications

Industrial control systems requiring non-volatile data retention
Automotive electronics demanding high endurance memory solutions
Consumer devices needing fast boot-up times and low power consumption
IoT edge nodes utilizing compact form factor storage

Memory IC Procurement Notes

Verify the specific suffix 'T' indicates tape and reel packaging configuration against official manufacturer documentation. Confirm the exact thermal grade and moisture sensitivity level requirements match your assembly process specifications. Ensure compatibility with the 1.65V to 2V supply rail before finalizing procurement orders.

Memory IC Selection Notes

Select this component when infinite write endurance and high-speed serial access are critical. Compare the 4 Mbit capacity and 8-DFN footprint against alternative MRAM or Flash solutions. Evaluate the 133 MHz Quad SPI performance against system bus speed requirements. Verify the 0°C to +70°C operating range meets environmental constraints.

Memory IC Part Context

This part belongs to the EMxxLX series of Quad SPI MRAM devices from Everspin Technologies. The series offers various capacities including 4 Mbit and 16 Mbit options in different packages. These devices utilize spin-transfer torque magnetic tunnel junction technology for reliable data storage.
